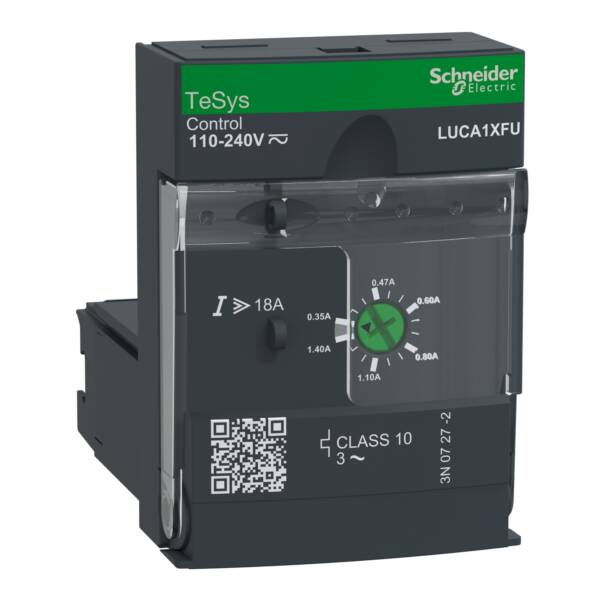

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA1XFU

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA1XFU

LUCA1XFU

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA1XFU

Control

~~List Price £70.99 +VAT~~

Our Price £53.24 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCA1XFU
Weight (kg): 0.12 kg
Type: TeSys U
Type of motor protection: Thermal/magnetic release
Rated control supply voltage Us at AC 50HZ: 110…240 V
Number of poles: 3
Rated control supply voltage Us at AC 60HZ: 110…240 V
Rated control supply voltage Us at DC: 110…220 V
Initial value of the undelayed short-circuit release - setting range: 18
Voltage type for actuating: AC/DC
End value adjustment range undelayed short-circuit release: 18
With ground fault protection function: TRUE
Overload release current setting: 0.35…1.4 A
Rated permanent current Iu: 1.4
Short-circuit release function: Undelayed

Datasheet for LUCA1XFU - Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA1XFU
