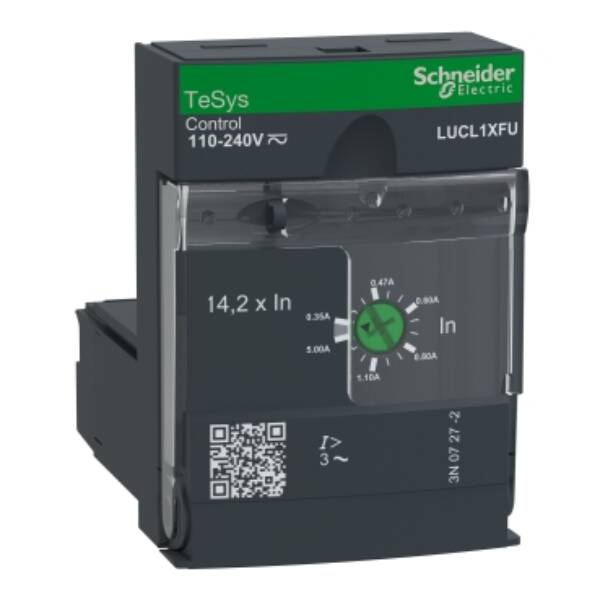

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL1XFU
Standard control unit, TeSys U, 0.35-1.4A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL1XFU

LUCL1XFU

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL1XFU

Control

List Price £110.63 +VAT

Our Price £82.97 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U magnetic control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides short circuit protection to motors with a rated current In 0.35-1.4A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCL1XFU
Weight (kg)
0.14 kg
Type
TeSys U
Type of motor protection
Other
Rated control supply voltage Us at AC 50HZ
110…240 V
Number of poles
3
Rated control supply voltage Us at AC 60HZ
110…240 V
Rated control supply voltage Us at DC
110…220 V
Initial value of the undelayed short-circuit release - setting range
5
craft\elements\db\ElementQuery
AC/DC
End value adjustment range undelayed short-circuit release
20
With ground fault protection function
FALSE
Rated permanent current Iu
1.4
Short-circuit release function
Undelayed

Datasheet for LUCL1XFU - Standard control unit, TeSys U, 0.35-1.4A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL1XFU

Download
