"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x200x80 mm, IP66" - Schneider Electric - NSYSBX20208

"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x200x80 mm, IP66" - Schneider Electric - NSYSBX20208

NSYSBX20208

"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x200x80 mm, IP66" - Schneider Electric - NSYSBX20208

Enclosures

~~List Price £188.36 +VAT~~

Our Price £141.27 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

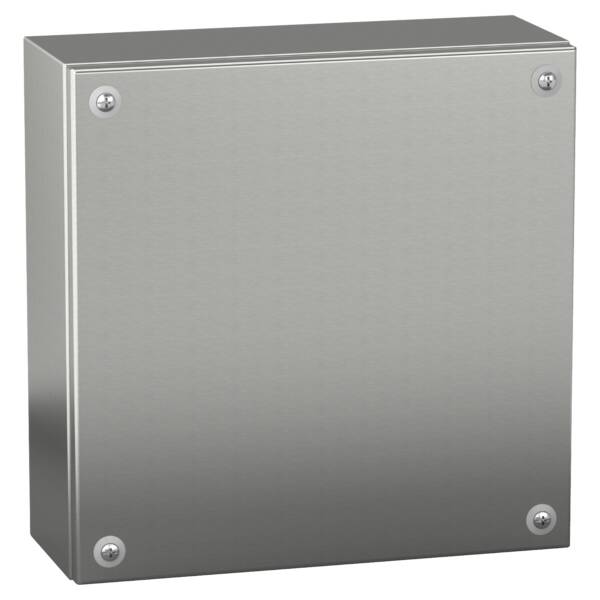

Industrial box for Spacial SBX. Multi purpose. 200 x 200 x 80 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover by captive screws Cover by 4 captive screw PZ2 outside sealed area. Made of stainless steel 304L. Protection IP 66, IK10.

Brand: Schneider Electric
Range: PanelSeT SBX
Part No: NSYSBX20208
Weight (kg): 1.74 kg
Type: Spacial SBX
Surface protection: Other
For Ex-zone gas: None
Extension possible: FALSE
With cover: TRUE
Operating temperature: -35…80 Degrees celsius
RAL-number: 7035
With transparent cover: FALSE
Degree of protection (IP): IP66
Compliant with BS 6220: FALSE
Maintenance free in accordance with BS 5733: TRUE
Material plate thickness cabinet: 1.2
Colour: Grey
Length: 200
Width: 200
Circuit integrity: None
Material: Stainless steel
Cover attachment: Screwed
Sealable: TRUE
Connection type: Screwed terminal
Mounting method: Surface mounted
Halogen free: TRUE
For Ex-Zone dust: None
Depth: 80
Impact strength: IK10
Shape: Square
Degree of protection (NEMA): 4
Explosion-tested version: FALSE

Datasheet for NSYSBX20208 - "Stainless steel wall mounted industrial box, PanelSeT SBX, 200x200x80 mm, IP66" - Schneider Electric - NSYSBX20208

Download
