NSYTRR42PE

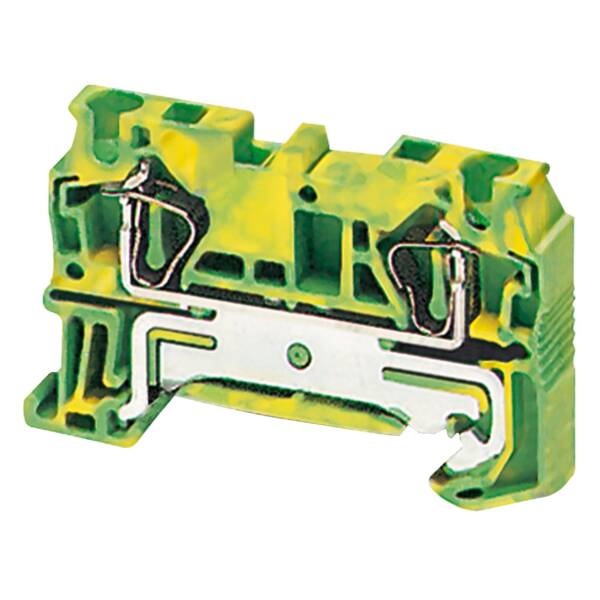

SPRING TERMINAL, PROTECTIVE EARTH, 2 POINTS, 4MM², GREEN-YELLOW - Schneider Electric - NSYTRR42PE

Enclosures

~~List Price £2.94 +VAT~~

Our Price £2.21 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 4 mm² nominal cross section. It could be connection and disconnection by flat screwdriver. It has Green/Yellow surface treatment. Sold in lots of 50 units. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRR42PE
Weight (kg): 0.01 kg
Type: Linergy TR terminals blocks
Type of electrical connection 2: Spring clamp connection
Length: 56
Colour: Green/yellow
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Inflammability class of insulation material acc. with UL94: V0
Height at lowest possible mounting height: 36.5
Mounting method: DIN rail (top hat rail) 35 mm
Width/grid dimension: 6.2
PEN function possible: FALSE
Connectable conductor cross section solid-core: 0.08…6 mm²
Closing plate required: TRUE
Connectable conductor cross section fine-strand with cable end sleeve: 0.08…4 mm²
Connection position: Above
Connectable conductor cross section multi-wired: 0.08…4 mm²
Material insulation body: Thermoplastic
Operation temperature: -40…130 °C
Number of clamp positions per level: 2
Connectable conductor cross section fine-strand without cable end sleeve: 0.08…4 mm²
