NSYTRR22TB

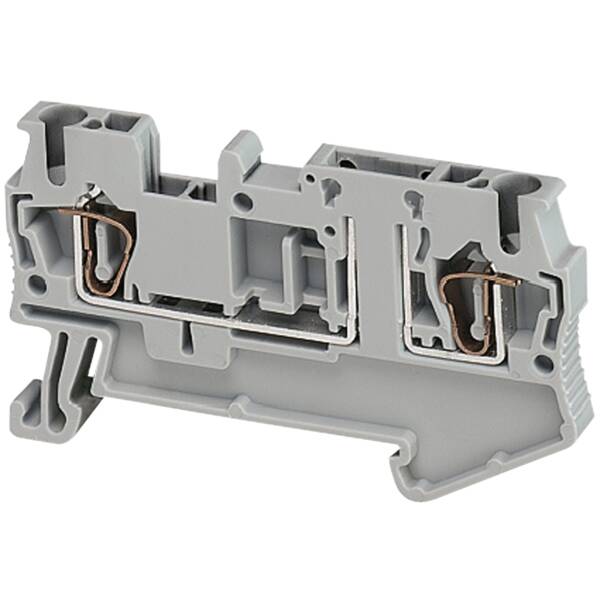

SPRING TERMINAL, BASIC DISCONNECT TERMINAL, 2 POINTS, 4MM², GREY - Schneider Electric - NSYTRR22TB

Enclosures

~~List Price £3.92 +VAT~~

Our Price £2.94 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Linergy. It belongs to linergy knife disconnect terminal block with 4 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/UL and 400V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 16A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 spring terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRR22TB
Weight (kg): 0.01 kg
Type: Linergy TR terminals blocks
Length: 60.5
Type of electrical connection 2: Spring clamp connection
Number of levels: 1
Colour: Grey
Type of component: Free configurable
Type of electrical connection 1: Spring clamp connection
Rated voltage: 400
Internally connected stages: FALSE
Inflammability class of insulation material acc. with UL94: V0
Height at lowest possible mounting height: 36.5
Mounting method: DIN rail (top hat rail) 35 mm
Connectable conductor cross section solid-core: 0.8…4 mm²
Width/grid dimension: 5.2
Closing plate required: TRUE
Connection position: Above
Connectable conductor cross section fine-strand with cable end sleeve: 0.8…4 mm²
Explosion-tested version 'Ex e': FALSE
Connectable conductor cross section multi-wired: 0.08…2.5 mm²
Material insulation body: Thermoplastic
Operation temperature: -40…130 °C
Connectable conductor cross section fine-strand without cable end sleeve: 0.08…2.5 mm²
Number of clamp positions per level: 2
Rated current In: 20
