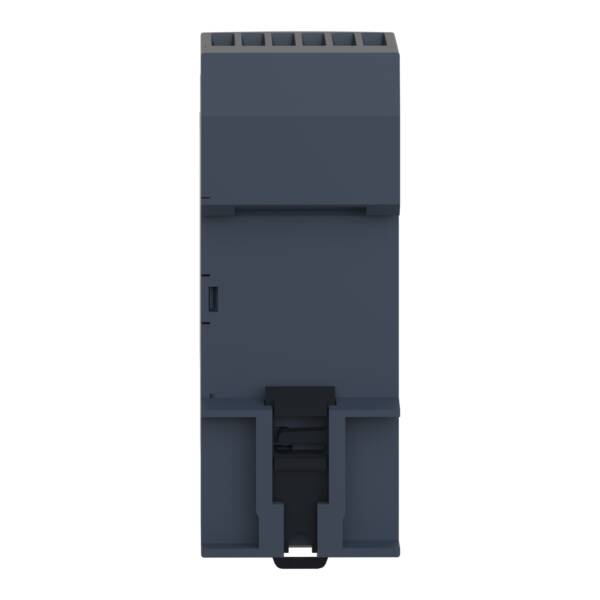

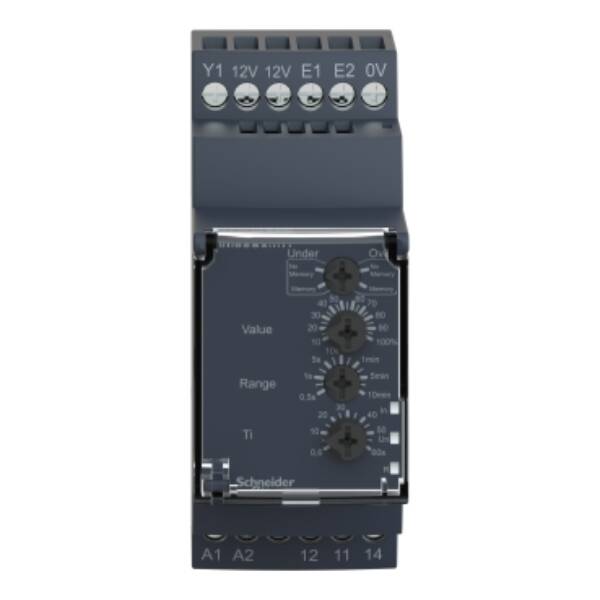

This Harmony RM35-S control relay allows monitoring of speed control. This modular control relay is ideal for monitoring of electrical values and speed variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand

Schneider Electric

Range

Harmony Control Relays

Part No

RM35S0MW

Weight (kg)

0.13 kg

Type

Harmony Control Relays

Type of electric connection

Screw connection

With feedback circuit

TRUE

With approval according to UL

TRUE

Number of outputs, signalling function, delayed, with contact

1

SIL according to IEC 61508

None

Evaluation inputs

2-channel

With approval for TÜV

FALSE

Performance level according to EN ISO 13849-1

Level a

With approval for BG BIA

FALSE

Voltage type for actuating

AC/DC

Height

90

Function rotational speed monitoring

TRUE

Rated operating frequency

45…66 Hertz

Width

35

Rated control supply voltage AC 50 Hz

24…240 Volt

Rated control supply voltage AC 60 Hz

24…240 Volt

Suitable for safety functions

FALSE

Function standstill monitoring

TRUE

Depth

72

Rated control supply voltage DC

24…240 Volt

With detachable clamps

FALSE
