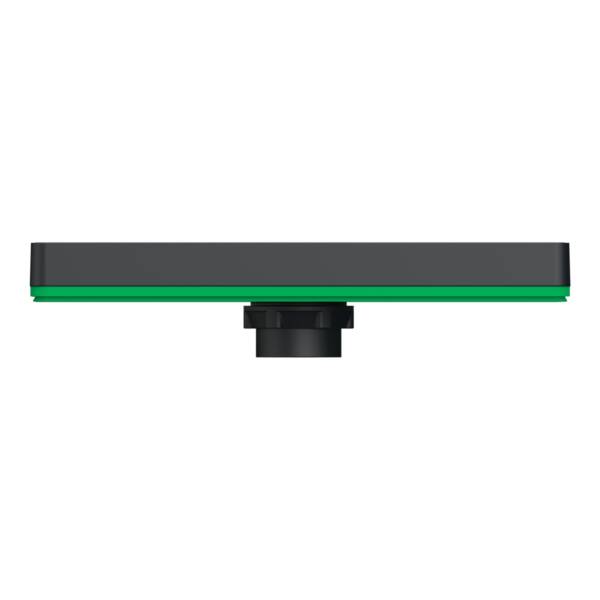

This Basic Modular HMI panel belongs to the Schneider Electric's Harmony ST6 range. This single-touch resistive screen has a multi-color status indicator showing the various operating modes. It comes with a 4" wide color TFT LCD display with 16 million colors and 480 x 272 pixel resolution This product works at a power consumption of 1.0 W and a rated voltage from 19.2V to 28.8V DC. Its dimensions are 140mm (width) x 101mm (height) x 29.8mm (depth) and weighs 0.22Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment.

Brand

Schneider Electric

Range

Harmony ST6

Part No

HMISTM62

Weight (kg)

0.39 kg

Type

Harmony ST6

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces USB

2

Radio standard GPRS

FALSE

Type of display

TFT

Radio standard GSM

FALSE

Degree of protection (IP), front side

IP67

Radio standard UMTS

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

With colour display

TRUE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

TRUE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 V

Supporting protocol for LON

FALSE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-232

1
