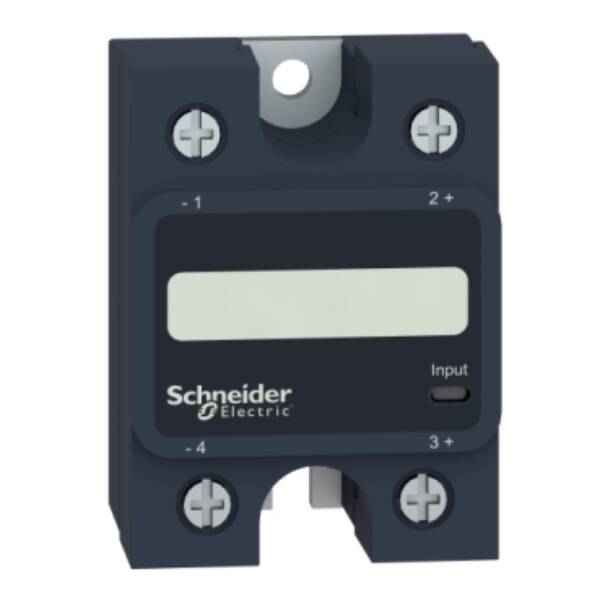

solid state relay - panel mounting - input 4-32V DC, output 48-660 V AC, 75A - Schneider Electric - SSP1A475BD
solid state relay - panel mounting - input 4-32V DC, output 48-660 V AC, 75A - Schneider Electric - SSP1A475BD

SSP1A475BD

solid state relay - panel mounting - input 4-32V DC, output 48-660 V AC, 75A - Schneider Electric - SSP1A475BD

Control

List Price £61.06 +VAT

Our Price £45.80 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 75A, is controlled withA 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0
Brand
Schneider Electric
Range
Harmony Solid State Relays
Part No
SSP1A475BD
Weight (kg)
0.10 kg
Type
Harmony Solid State Relays
Rated control supply voltage Us at AC 50HZ
48…660 V
Rated control supply voltage Us at AC 60HZ
48…660 V
Operating voltage
48…660 V
Number of phases
1
Modular version
FALSE
Rated operation current Ie at AC-53a
75
Rated operation current Ie at AC-51
75
Rated operation current Ie at AC-53b
75
Rated control supply voltage Us at DC
4…32 V
Rated operation current Ie at AC-1
75
Voltage type for actuating
AC/DC
Switching at zero-crossing
FALSE
Rated operation current Ie at AC-3
75

Datasheet for SSP1A475BD - solid state relay - panel mounting - input 4-32V DC, output 48-660 V AC, 75A - Schneider Electric - SSP1A475BD

Download
