SSP3A250BDRT

Solid state panel mount relay, 50 A, random switching, thermal pad, input 4…32 V DC, output 48…530 V AC - Schneider Electric - SSP3A250BDRT

Control

~~List Price £175.62 +VAT~~

Our Price £131.72 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

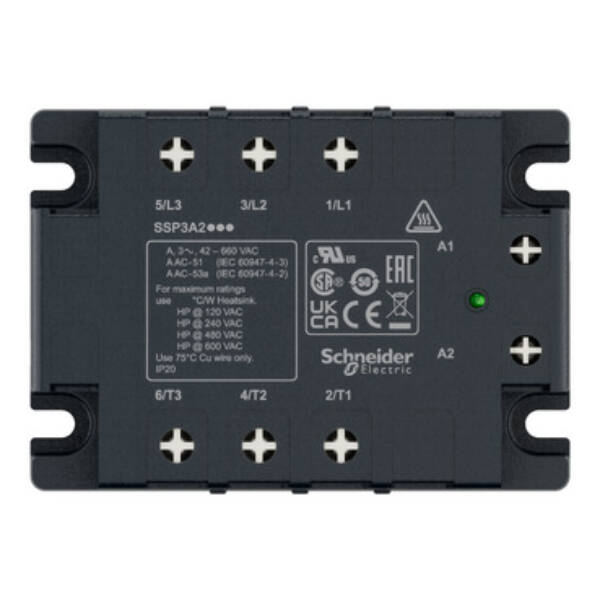

This Harmony SSP solid state panel mount 3-phase relay is rated 50A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 530V AC with random voltage switching, ideal for inductive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Solid State Relays
Part No: SSP3A250BDRT
Weight (kg): 0.27 kg
Type: Harmony Solid State Relays
Rated control supply voltage Us at AC 50HZ: 48…530 V
Rated control supply voltage Us at AC 60HZ: 48…530 V
Number of phases: 3
Operating voltage: 48…530 V
Modular version: FALSE
Rated operation current Ie at AC-53a: 50
Rated operation current Ie at AC-51: 50
Rated operation current Ie at AC-53b: 50
Voltage type for actuating: AC/DC
Rated control supply voltage Us at DC: 4…32 V
Rated operation current Ie at AC-1: 50
Switching at zero-crossing: FALSE
Rated operation current Ie at AC-3: 50

Datasheet for SSP3A250BDRT - Solid state panel mount relay, 50 A, random switching, thermal pad, input 4…32 V DC, output 48…530 V AC - Schneider Electric - SSP3A250BDRT
