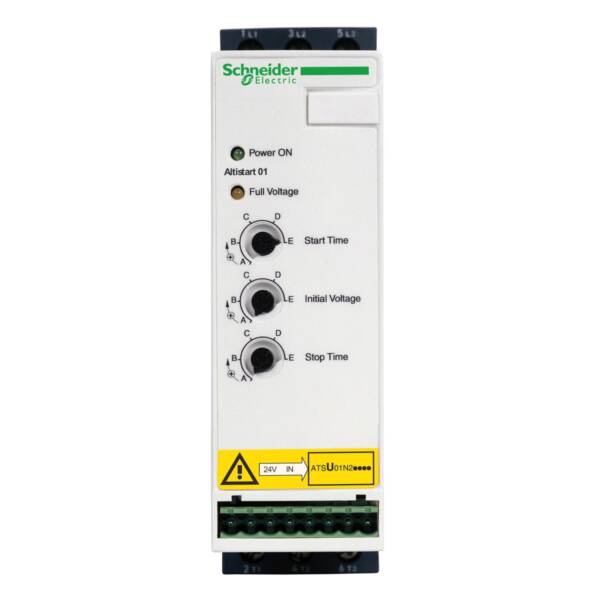

ATSU01N232LT
ATSU01N232LT
soft starter for asynchronous motor - ATSU01 - 32 A - 200..480V - 7.5..15 KW - Schneider Electric - ATSU01N232LT
Automation
List Price £369.55
+VAT
Our Price £277.16
+VAT
SAVE 26% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
The Altistart U01 soft start/soft stop unit can feed 3-phase asynchronous motors. It is designed primarily for combinations with TeSys U starter-controllers. It can be used for a motor rated power up to 20hp for 3-phase (200V to 480V AC) and up to 32A rating. It is 45mm wide, this makes it one of the smallest soft starters on the market, it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Its protection index is IP20. It weighs 0.49kg and its dimensions are, 45mm wide, 314mm high, 170mm deep. The Altistart U01 is designed for the following simple applications like conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It complies with standards IEC/EN 60947-4-2, and carries UL, CSA, C-Tick, and CCC certifications, and CE marking. It can be easily combined with a TeSys U controller by means of the power connector VW3G4104. It is easy to install on a DIN rail. Altistart 01 combines simplicity with easy cabling, fast configuration and efficiency. Reduced machine wear and minimized maintenance time will optimize operations. Together with TeSys Model U, it provides a unique motor starter solution.
Brand
Schneider Electric
Range
Altistart 01
Part No
ATSU01N232LT
Weight (kg)
0.58 kg
Type
Altistart 01
craft\elements\db\ElementQuery
TRUE
Rated operating voltage Ue
200…480 V
craft\elements\db\ElementQuery
Other
Rated operation current Ie at 40 °C Tu
32
Internal bypass
TRUE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
7.5
Rated control supply voltage Us at DC
24 V
craft\elements\db\ElementQuery
AC/DC
Rated power three-phase motor, inline, at 400 V
15
craft\elements\db\ElementQuery
FALSE
Degree of protection (IP)
IP20
craft\elements\db\ElementQuery
Single direction
craft\elements\db\ElementQuery
40
Datasheet for ATSU01N232LT - soft starter for asynchronous motor - ATSU01 - 32 A - 200..480V - 7.5..15 KW - Schneider Electric - ATSU01N232LT
Download
