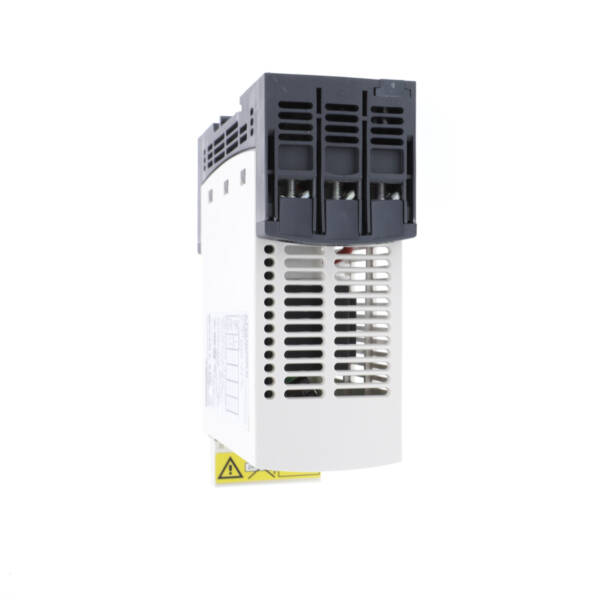

soft starter for asynchronous motor - ATS01 - 6 A - 380..415V - 1.5..3 KW - Schneider Electric - ATS01N206QN

ATS01N206QN

soft starter for asynchronous motor - ATS01 - 6 A - 380..415V - 1.5..3 KW - Schneider Electric - ATS01N206QN

Automation

List Price £198.89 +VAT

Our Price £149.17 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 6A. This Altistart 01 can be used for a motor rated power up to 1.1kW or 1.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Brand
Schneider Electric
Range
Altistart 01
Part No
ATS01N206QN
Weight (kg)
0.53 kg
Type
Altistart 01
With display
TRUE
Rated operating voltage Ue
380…415 Volt
Release class
Other
Rated operation current Ie at 40 °C Tu
6
Internal bypass
TRUE
Torque control
FALSE
Rated power three-phase motor, inline, at 400 V
1.5
Voltage type for actuating
AC/DC
Integrated motor overload protection
FALSE
Degree of protection (IP)
IP20
Function
Single direction
Rated surrounding temperature without derating
40

Datasheet for ATS01N206QN - soft starter for asynchronous motor - ATS01 - 6 A - 380..415V - 1.5..3 KW - Schneider Electric - ATS01N206QN

Download
