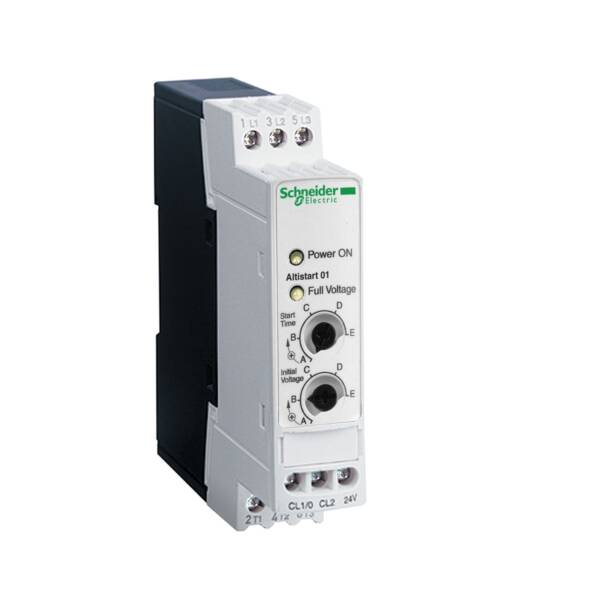

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 3A. This Altistart 01 can be used for a motor rated power up to 1.1kW or 1.5hp for 3-phase (110V to 480V AC) and up to 0.37kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 22.5mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Brand

Schneider Electric

Range

Altistart 01

Part No

ATS01N103FT

Weight (kg)

0.17 kg

Type

Altistart 01

With display

FALSE

Rated control supply voltage AC 50 Hz

110…240 Volt

Rated operating voltage Ue

110…480 Volt

Rated control supply voltage AC 60 Hz

110…240 Volt

Release class

Other

Rated operation current Ie at 40 °C Tu

3

Internal bypass

TRUE

Torque control

FALSE

Rated power three-phase motor, inline, at 230 V

0.55

Rated power three-phase motor, inline, at 400 V

1.1

Rated control supply voltage DC

24 Volt

Voltage type for actuating

AC/DC

Degree of protection (IP)

IP20

Integrated motor overload protection

FALSE

Function

Single direction

Rated surrounding temperature without derating

40
