soft starter for asynchronous motor - ATS01 - 25 A - 110..480V - 2.2..11 KW - Schneider Electric - ATS01N125FT
soft starter for asynchronous motor - ATS01 - 25 A - 110..480V - 2.2..11 KW - Schneider Electric - ATS01N125FT

ATS01N125FT

soft starter for asynchronous motor - ATS01 - 25 A - 110..480V - 2.2..11 KW - Schneider Electric - ATS01N125FT

Automation

List Price £263.62 +VAT

Our Price £197.72 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

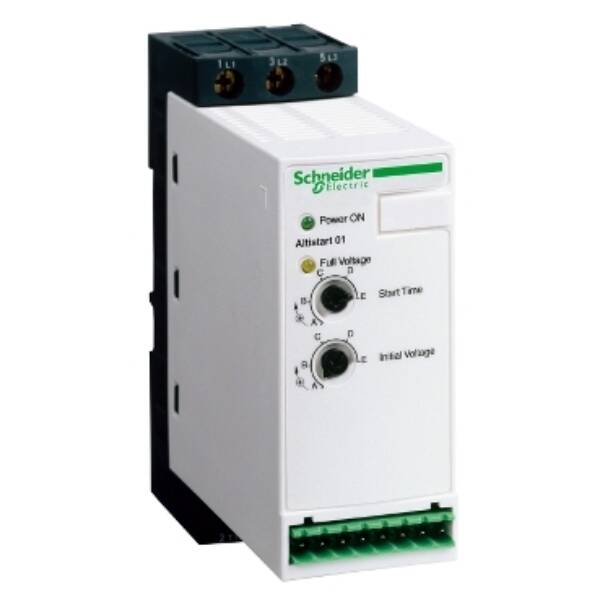

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 25A. This Altistart 01 can be used for a motor rated power up to 11kW or 15hp for 3-phase (110V to 480V AC) and up to 2.2kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Brand
Schneider Electric
Range
Altistart 01
Part No
ATS01N125FT
Weight (kg)
0.41 kg
Type
Altistart 01
craft\elements\db\ElementQuery
FALSE
Rated control supply voltage Us at AC 50HZ
110…240 V
Rated operating voltage Ue
110…480 V
craft\elements\db\ElementQuery
110…240 V
craft\elements\db\ElementQuery
Other
Rated operation current Ie at 40 °C Tu
25
Internal bypass
TRUE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
3
Rated control supply voltage Us at DC
24 V
craft\elements\db\ElementQuery
AC/DC
Rated power three-phase motor, inline, at 400 V
7.5
craft\elements\db\ElementQuery
FALSE
Degree of protection (IP)
IP20
craft\elements\db\ElementQuery
Single direction
craft\elements\db\ElementQuery
40

Datasheet for ATS01N125FT - soft starter for asynchronous motor - ATS01 - 25 A - 110..480V - 2.2..11 KW - Schneider Electric - ATS01N125FT

Download
