soft starter for asynchronous motor - ATS01 - 22 A - 200..240 V - 4..5.5 KW - Schneider Electric - ATS01N222LU

soft starter for asynchronous motor - ATS01 - 22 A - 200..240 V - 4..5.5 KW - Schneider Electric - ATS01N222LU

ATS01N222LU

soft starter for asynchronous motor - ATS01 - 22 A - 200..240 V - 4..5.5 KW - Schneider Electric - ATS01N222LU

Automation

~~List Price £291.88 +VAT~~

Our Price £218.91 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

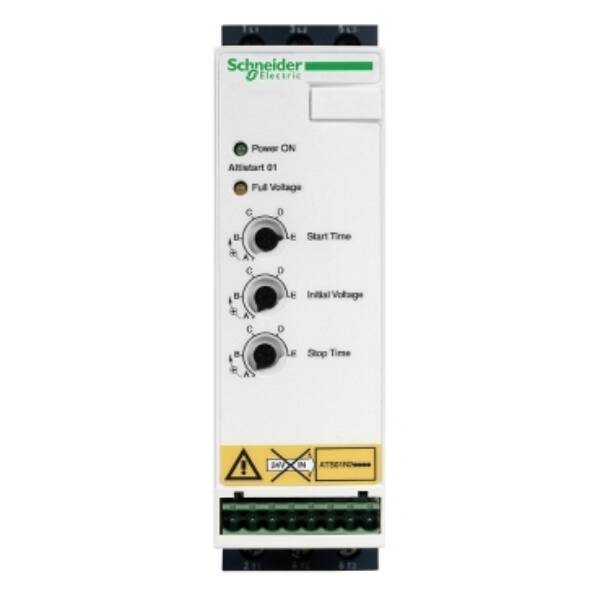

This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 22A. This Altistart 01 can be used for a motor rated power up to 5.5kW or 7.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Brand: Schneider Electric
Range: Altistart 01
Part No: ATS01N222LU
Weight (kg): 0.64 kg
Type: Altistart 01
With display: TRUE
Rated operating voltage Ue: 200…240 Volt
Release class: Other
Rated operation current Ie at 40 °C Tu: 22
Internal bypass: TRUE
Torque control: FALSE
Rated power three-phase motor, inline, at 230 V: 4.5
Voltage type for actuating: AC/DC
Degree of protection (IP): IP20
Integrated motor overload protection: FALSE
Function: Single direction
Rated surrounding temperature without derating: 40

Datasheet for ATS01N222LU - soft starter for asynchronous motor - ATS01 - 22 A - 200..240 V - 4..5.5 KW - Schneider Electric - ATS01N222LU

Download
