soft starter-ATS22-control110V-power 208V(3hp)/230V(5hp)/460V(10hp)/575V(15hp) - Schneider Electric - ATS22D17S6U

soft starter-ATS22-control110V-power 208V(3hp)/230V(5hp)/460V(10hp)/575V(15hp) - Schneider Electric - ATS22D17S6U

ATS22D17S6U

soft starter-ATS22-control110V-power 208V(3hp)/230V(5hp)/460V(10hp)/575V(15hp) - Schneider Electric - ATS22D17S6U

Automation

~~List Price £621.41 +VAT~~

Our Price £466.06 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

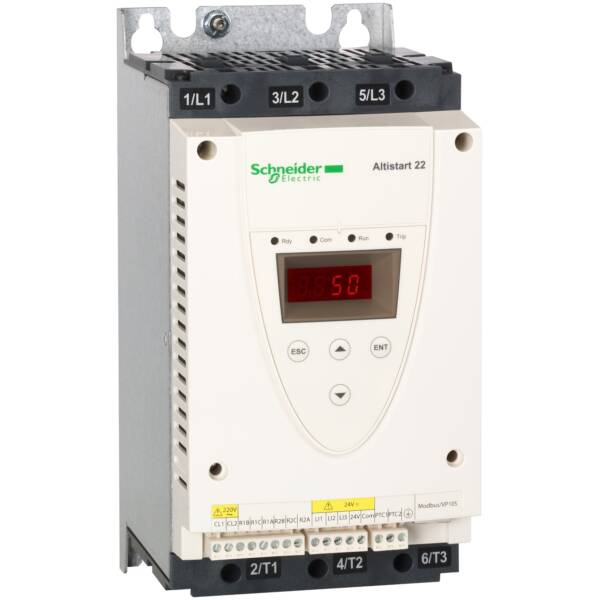

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 17A, a rated power from 3HP to 15HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Brand: Schneider Electric
Range: Altistart 22
Part No: ATS22D17S6U
Weight (kg): 8.20 kg
Type: Altistart 22
With display: FALSE
Rated control supply voltage Us at AC 50HZ: 110 V
Rated operating voltage Ue: 208…600 V
Rated control supply voltage Us at AC 60HZ: 110 V
Release class: Other
Rated operation current Ie at 40 °C Tu: 17
Internal bypass: TRUE
Torque control: TRUE
Rated power three-phase motor, inline, at 230 V: 4
Rated power three-phase motor, inline, at 400 V: 7.5
Voltage type for actuating: AC/DC
Function: Single direction
Integrated motor overload protection: TRUE
Degree of protection (IP): IP20
Rated surrounding temperature without derating: 40

Datasheet for ATS22D17S6U - soft starter-ATS22-control110V-power 208V(3hp)/230V(5hp)/460V(10hp)/575V(15hp) - Schneider Electric - ATS22D17S6U

Download
