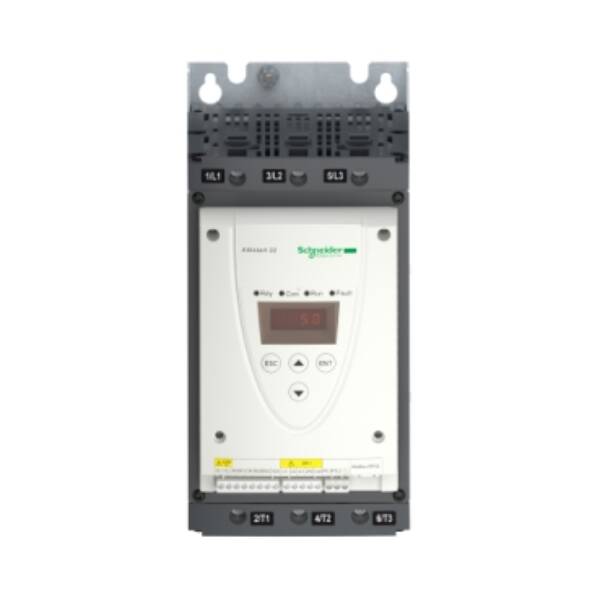

ATS22D88Q

soft starter-ATS22-control 220V-power 230V(22kW)/400...440V(45kW) - Schneider Electric - ATS22D88Q

Automation

~~List Price £1,060.39 +VAT~~

Our Price £795.29 +VAT

SAVE 26% OFF List Price

Fast Track Delivery Product

This soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 88A and 230V to 440V, a rated power up to 45kW (400V to 440V in supply line) and up to 75kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Brand: Schneider Electric
Range: Altistart 22
Part No: ATS22D88Q
Weight (kg): 8.17 kg
Type: Altistart 22
With display: FALSE
Rated control supply voltage Us at AC 50HZ: 230 V
Rated operating voltage Ue: 230…440 V
Rated control supply voltage Us at AC 60HZ: 220…230 V
Release class: Other
Rated operation current Ie at 40 °C Tu: 88
Internal bypass: TRUE
Torque control: TRUE
Rated power three-phase motor, inline, at 230 V: 22
Rated control supply voltage Us at DC: 24 V
Voltage type for actuating: AC
Rated power three-phase motor, inline, at 400 V: 45
Rated power three-phase motor, inside delta, at 230 V: 37
Function: Single direction
Integrated motor overload protection: TRUE
Degree of protection (IP): IP20
Rated power three-phase motor, inside delta, at 400 V: 75
Rated surrounding temperature without derating: 40
