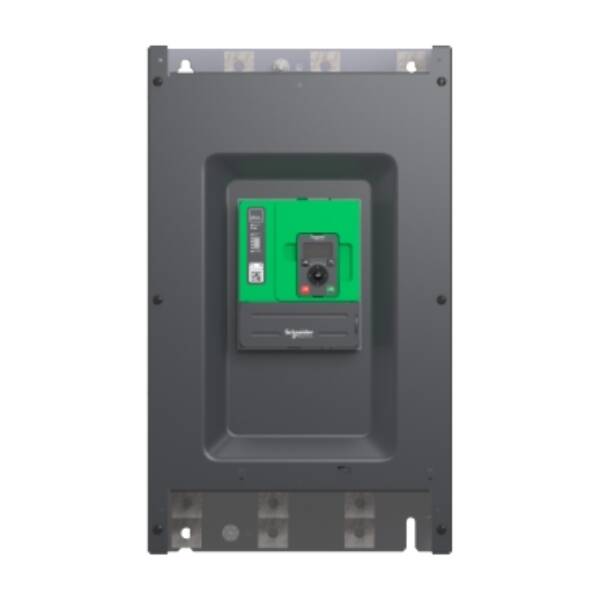

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 410A in normal duty, it supplies motor from 110kW to 400kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 400mm (width) x 314mm (depth) x 670mm (height) and it weighs 51,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.

Brand

Schneider Electric

Range

Altivar Soft Starter ATS480

Part No

ATS480C41Y

Weight (kg)

60.00 kg

With display

FALSE

Rated control supply voltage Us at AC 50HZ

208…690 V

Rated operating voltage Ue

208…690 V

Rated control supply voltage Us at AC 60HZ

208…690 V

Release class

Other

Rated operation current Ie at 40 °C Tu

410

Internal bypass

FALSE

Torque control

TRUE

Rated power three-phase motor, inline, at 230 V

110

Rated power three-phase motor, inline, at 400 V

220

Voltage type for actuating

AC

Degree of protection (IP)

IP00

Function

Single direction

Rated power three-phase motor, inside delta, at 230 V

220

Integrated motor overload protection

TRUE

Rated power three-phase motor, inside delta, at 400 V

315

Rated surrounding temperature without derating

40
