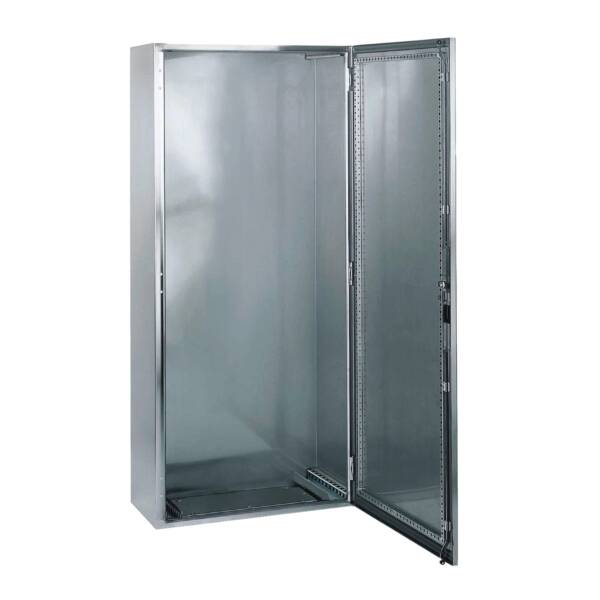

"PanelSeT SMX stainless steel 316L floor-standing enclosure is a multi-purpose enclosure designed for use in harsh environments" "It has a nominal height, width and depth of 1800mm, 800mm and 400mm respectively" "The enclosure is made with a Scotch-Brite® brushed surface finish" "It is certified to both UL 508 and CAN/CSA 22 standards, and has a high resistance to dust and water with an IP66 rating (IEC60529)" "It also has a high impact resistance with an IK10 (IEC62262) rating" "The enclosure consists of a body, a cable gland plate, one plain door, four mounting plate brackets, and a locking system with handle on the door" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "The enclosure has a three-point lock with a handle with 5mm double-bar insert" "The doors and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 98kg"

Brand

Schneider Electric

Range

PanelSeT SMX

Part No

NSYSMX18840H

Weight (kg)

100.00 kg

Type

Spacial SMX

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

With cover

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7043

Transparent cover

FALSE

Height

1800

Degree of protection (IP)

IP55

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Stainless steel

Width

800

Intermediate mounting

FALSE

Surface finishing

Brushed/grinded

Material

Stainless steel

Number of doors

1

Suitable for outdoor set-up

FALSE

Number of locks

3

Corner model

FALSE

Material quality

Stainless steel 316 (V4A)

Suitable for wall mounting

FALSE

Suitable for wall built-in

FALSE

Depth

400

Max. permissible load of the mounting plate according to IEC 62208

300

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

12

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the door(s) according to IEC 62208

50
