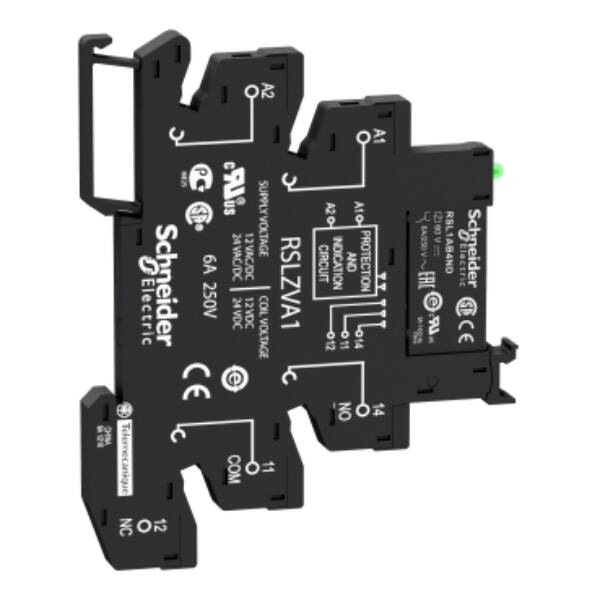

Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 48 V AC - Schneider Electric - RSL1PVEU

RSL1PVEU

Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 48 V AC - Schneider Electric - RSL1PVEU

Control

~~List Price £22.80 +VAT~~

Our Price £17.10 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 48V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Electromechanical Relays
Part No: RSL1PVEU
Weight (kg): 0.03 kg
Type: Harmony Electromechanical Relays
Type of electric connection: Screw connection
Material of contact surface: Other
Material of contact insert: Other
Voltage type for actuating: AC/DC
Height: 78.6
Degree of protection (IP): IP40
Width: 6.2
Rated control supply voltage AC 50 Hz: 48 Volt
Rated control supply voltage AC 60 Hz: 48 Volt
Drive, switching attitude: Mono stable
With forced-guided contacts: TRUE
Nominal current: 6
Drive, polarization: Polarity free
With LED indication: TRUE
Depth: 95
Type of switch contact: Single contact
Complete with socket: TRUE
Number of contacts as change-over contact: 1
Material contact: Other
Rated control supply voltage DC: 48 Volt
With detachable clamps: TRUE
Relay technology category according to IEC 61810-7: RT I

Datasheet for RSL1PVEU - Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 48 V AC - Schneider Electric - RSL1PVEU

Download
