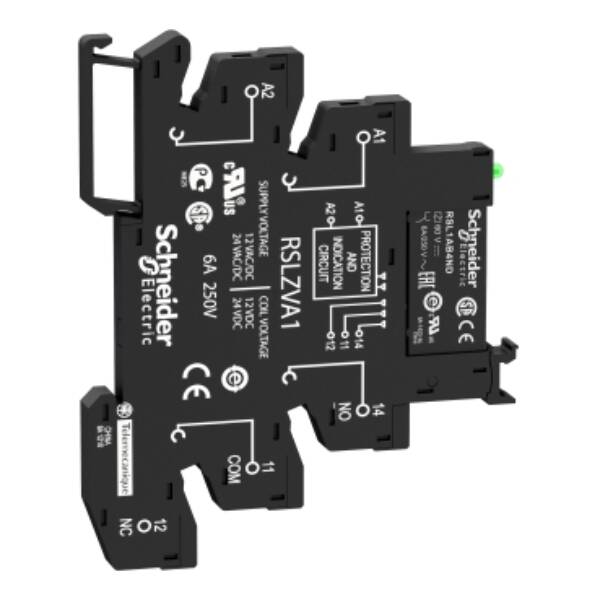

Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 12 V AC - Schneider Electric - RSL1PVJU

RSL1PVJU

Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 12 V AC - Schneider Electric - RSL1PVJU

Control

List Price £20.92 +VAT

Our Price £15.69 +VAT

SAVE 26% OFF List Price
Fast Track Delivery Product
Get in touch
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RSL1PVJU
Weight (kg)
0.03 kg
Type
Harmony Electromechanical Relays
Width
6.2
Rated control supply voltage Us at AC 50HZ
12
Rated control supply voltage Us at AC 60HZ
12
Type of electric connection
Screw connection
Drive, switching attitude
Mono stable
With forced-guided contacts
TRUE
Nominal current
6
Drive, polarization
Polarity free
With LED indication
TRUE
Depth
95
Type of switch contact
Simple contact
Complete with socket
TRUE
Number of contacts as change-over contact
1
Rated control supply voltage Us at DC
12 V
Height
78.6
Voltage type for actuating
AC/DC
Degree of protection (IP)
IP40
With detachable clamps
TRUE

Datasheet for RSL1PVJU - Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 12 V AC - Schneider Electric - RSL1PVJU
