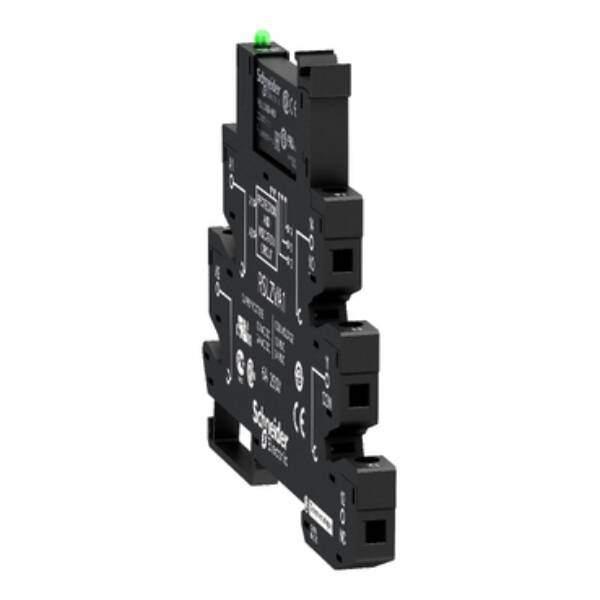

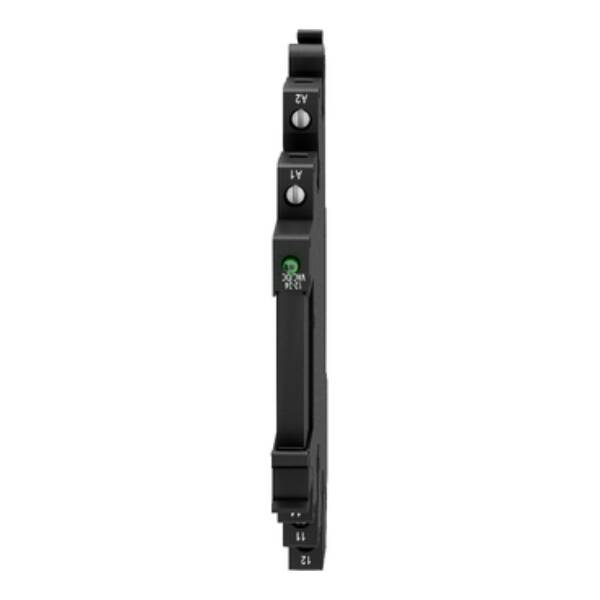

Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, screw connector, 230 V AC - Schneider Electric - RSL1PVPU

Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, screw connector, 230 V AC - Schneider Electric - RSL1PVPU

RSL1PVPU

Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, screw connector, 230 V AC - Schneider Electric - RSL1PVPU

Control

~~List Price £24.40 +VAT~~

Our Price £18.30 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 60V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Electromechanical Relays
Part No: RSL1PVPU
Weight (kg): 0.03 kg
Type: Harmony Electromechanical Relays
Width: 6.2
Type of electric connection: Screw connection
Drive, switching attitude: Mono stable
With forced-guided contacts: TRUE
Nominal current: 6
With LED indication: TRUE
Drive, polarization: Polarity free
Type of switch contact: Simple contact
Depth: 95
Complete with socket: TRUE
Number of contacts as change-over contact: 1
Height: 78.6
Voltage type for actuating: DC
Rated control supply voltage Us at DC: 60 V
Degree of protection (IP): IP40
With detachable clamps: TRUE
