XENT1192

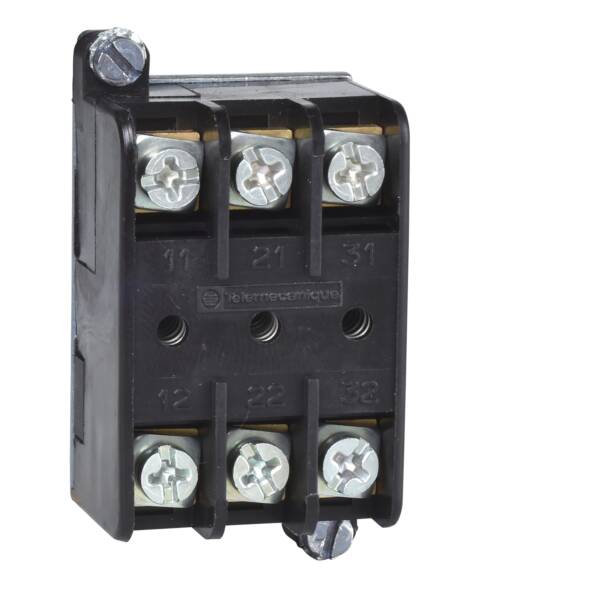

single isolating block XEN-T - for control circuit - Telemecanique - XENT1192

Control

~~List Price £86.45 +VAT~~

Our Price £64.84 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This product is part of the Harmony XAC range, an offer of pendant control stations for Ø22mm plastic signalling units. This single isolating block for control circuit. It has 3 normally closed contacts. It is an isolating block with a rated insulation voltage of 400V and a conventional enclosed thermal current of 10A. It is designed for front mounting with slow-break contact operation. It is furnished with screw clamp terminals for electrical connection. It offers mechanical durability of 1 million operating cycles. It weighs 0.05kg. It is suitable for industry and service sector, hoist and travelling cranes. It meets CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1 and EN/IEC 60204-32 standards. It is compatible with the pendant control stations XACA. It is designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards. They are not only simples and intuitive, but also very comfortable for the operator to use.

Brand: Schneider Electric
Range: Harmony-XAC
Part No: XENT1192
Weight (kg): 0.07 kg
Type: Harmony-XAC
Number of contacts as normally closed contact: 3
Type of electric connection: Screw connection
Model: Top mounting and integrable
Rated operation current Ie at AC-15, 230 V: 3
Mounting method: Front fastening
Lamp holder: None
