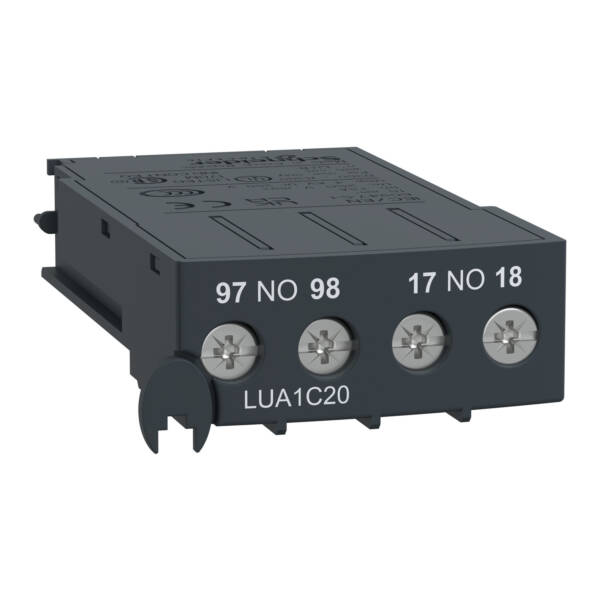

TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 1NO contact for open/close status (OF contact) and 1NO contact for tripping status (SD contact), rated up to 5A 250V AC/DC. To be inserted in the provided location of the power base. compliant (RoHS/REACh).
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUA1C20
Weight (kg)
0.03 kg
Type
TeSys U
Number of contacts as normally open contact
2
Type of electric connection
Screw connection
Model
Integrable
Rated operation current Ie at AC-15, 230 V
2.5
Mounting method
Other
Number of fault-signal switches
1
Datasheet for LUA1C20 - signalling contacts LUA - 2 NO - Schneider Electric - LUA1C20
