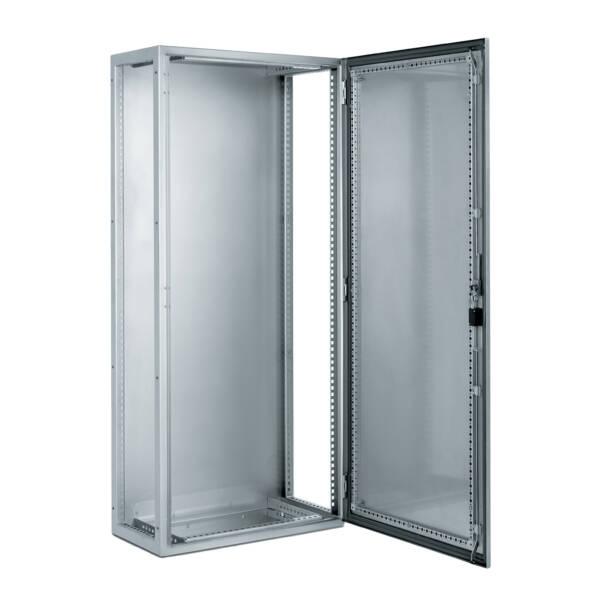

"PanelSeT SFX is a versatile, multi-purpose floor-standing enclosure made of stainless steel 304L with a Scotch-Brite® brushed surface finish for superior corrosion resistance" "It is designed for use in harsh environments, and can withstand high impact, dust, and water with an IK10 (IEC62262) and IP66 (IEC60529) rating respectively" "This enclosure has a nominal height, width and depth of 2000mm, 800mm and 600mm respectively, and is composed of a single piece structure folded and welded with a rear panel integrated" "It has one plain door with reinforcement frame, four mounting plate brackets, a cable gland plate, and a three-point lock with a handle with 5mm double-bar insert" "The door is reversible, allowing it to open up to 120° for easy access to the equipment inside" "It has removable parts such as the door by hinges, the mounting plate bracket by screws, and the cable gland plate by clips" "The net weight of the enclosure is 81kg, and it is compliant with industry standards such as IEC 62208 and NEMA 4X"

Brand

Schneider Electric

Range

PanelSeT SFX

Part No

NSYSFX20860

Weight (kg)

98.00 kg

Type

Spacial SFX

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

Suitable for metrical mounting

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

2000

Degree of protection (IP)

IP66

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Stainless steel

Width

800

Intermediate mounting

FALSE

Surface finishing

Other

Number of doors

1

Material

Stainless steel

Number of locks

1

Corner model

FALSE

Suitable for outdoor set-up

FALSE

Material quality

Stainless steel 316 (V4A)

Suitable for wall mounting

FALSE

Suitable for wall built-in

FALSE

Depth

600

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

300

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the door(s) according to IEC 62208

50
