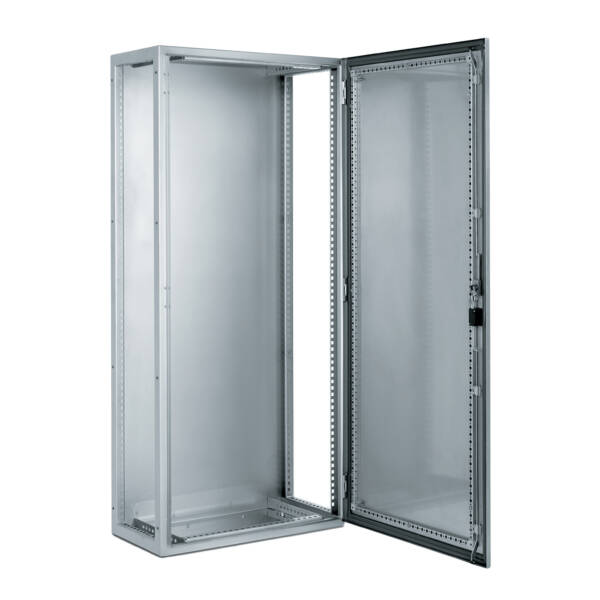

"PanelSeT SFX stainless steel 304L multi-purpose floor-standing enclosure is designed for use in harsh environments," "it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 2000mm, 800mm and 400mm respectively" "The enclosure is made with a Scotch-Brite® brushed surface finish" "The enclosure consists of a structure, a cable gland plate, a plain door with reinforcement frame, four mounting plate brackets, and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The enclosure has a three-point lock with a handle with 5mm double-bar insert" "The door, the cable gland plate and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 90kg" "It is UL certified and meets the standards of IEC 62208 and NEMA 4X" "The enclosure is resistant to corrosive and specific hygiene environments" "It is accessible from the front and side for operation"

Brand

Schneider Electric

Range

PanelSeT SFX

Part No

NSYSFX20840

Weight (kg)

91.00 kg

Type

Spacial SFX

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

With cover

FALSE

Suitable for metrical mounting

TRUE

RAL-number

7035

Transparent cover

FALSE

Height

2000

Degree of protection (IP)

IP66

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Stainless steel

Width

800

Intermediate mounting

FALSE

Surface finishing

Other

Number of doors

1

Material

Stainless steel

Suitable for outdoor set-up

FALSE

Corner model

FALSE

Number of locks

1

Material quality

Stainless steel 316 (V4A)

Suitable for wall mounting

FALSE

Depth

400

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

300

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

Pole fastening

FALSE

With rear door

FALSE

Max. permissible load of the door(s) according to IEC 62208

50
