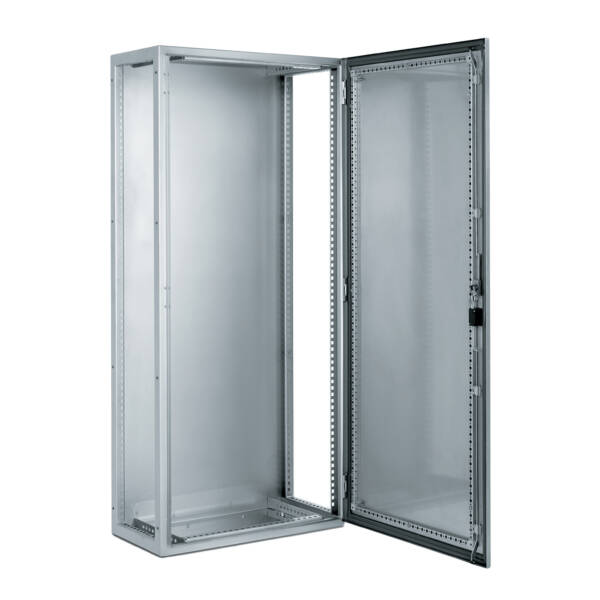

"PanelSeT SFX stainless steel 304L floor-standing enclosure is designed for multi-purpose use and is resistant to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 2000mm, 1000mm and 600mm respectively" "The enclosure is made with a Scotch-Brite® brushed surface finish" "The enclosure consists of a structure, two plain doors with reinforcement frames, four mounting plate brackets, a cable gland plate and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The enclosure has a three-point lock with a handle with 5mm double-bar insert" "The door, the cable gland plate and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 105kg"

Brand

Schneider Electric

Range

PanelSeT SFX

Part No

NSYSFX201060

Weight (kg)

112.00 kg

Type

Spacial SFX

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

With cover

FALSE

Suitable for metrical mounting

TRUE

RAL-number

7035

Transparent cover

FALSE

Height

2000

Degree of protection (IP)

IP55

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Stainless steel

Width

1000

Intermediate mounting

FALSE

Surface finishing

Other

Number of doors

2

Material

Stainless steel

Suitable for outdoor set-up

FALSE

Corner model

FALSE

Number of locks

1

Material quality

Stainless steel 316 (V4A)

Suitable for wall mounting

FALSE

Suitable for wall built-in

FALSE

Depth

600

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

300

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

12

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the door(s) according to IEC 62208

50
