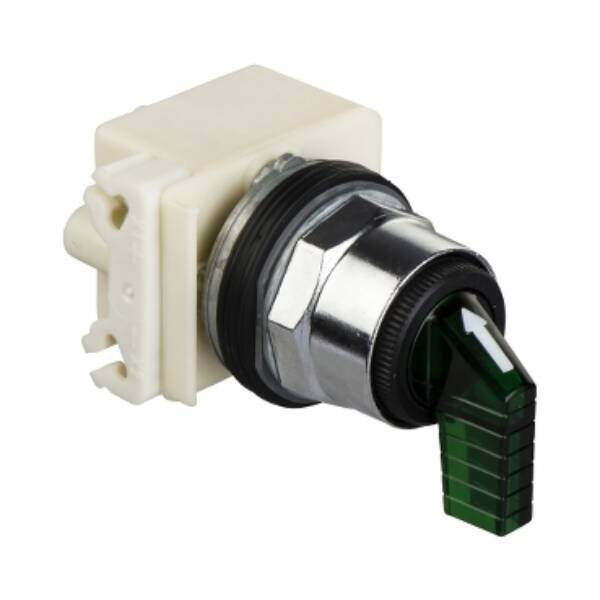

This Harmony 9001K, modular illuminated green selector switch with long handle has 3 positions, operates with spring return from left and right to center position. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and is supplied with a C cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Brand

Schneider Electric

Range

Harmony 9001 K

Part No

9001K53J35LGFG

Weight (kg)

0.25 kg

Type

Harmony 9001 K

With light source

TRUE

Spring-return

TRUE

Colour front ring

Chrome

Type of electric connection

Screw connection

Type of control element

Long turning handle

Supply voltage

24 Volt

Number of switch positions

3

Material front ring

Metal

Hole diameter

31

Switching function latching

FALSE

Colour button

Green

With front ring

TRUE

Degree of protection (IP)

IP66

Suitable for illumination

TRUE

Degree of protection (NEMA)

13
