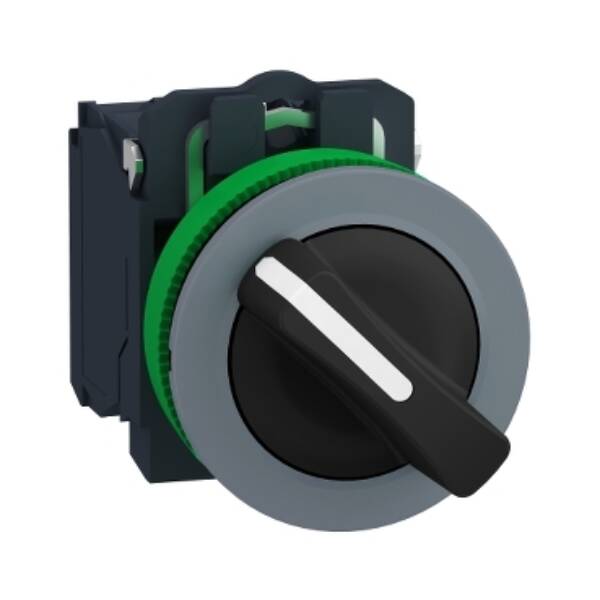

This flush mounted selector switch is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a black standard handle with 2 positions 90 degree stay put. The contact type is 1NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is plastic color plated grey and the fixing collar is plactic. The weight of this selector switch is 43 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. Complies with directives such as RoHS, WEEE

Brand

Schneider Electric

Range

Harmony XB5

Part No

XB5FD21C0

Weight (kg)

0.05 kg

Type

Harmony XB5

With light source

FALSE

Spring-return

FALSE

Colour front ring

Black

Type of electric connection

Screw connection

Type of control element

Other

Number of switch positions

2

Supply voltage

0 V

Hole diameter

30.5

Material front ring

Plastic

Switching function latching

FALSE

Number of contacts as normally open contact

1

Colour button

Black

With front ring

TRUE

Suitable for illumination

FALSE

Degree of protection (IP)

IP66

Degree of protection (NEMA)

13
