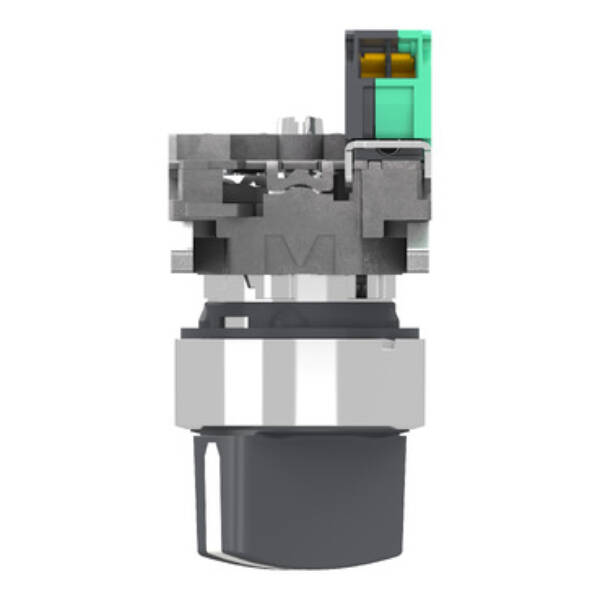

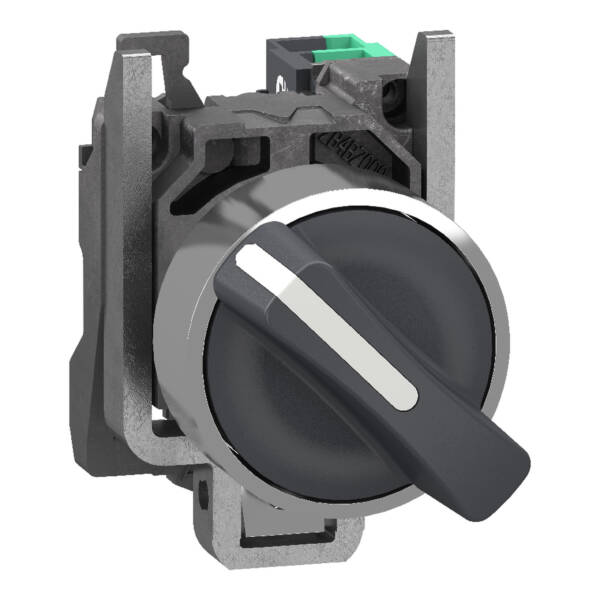

This Harmony XB4 modular black selector switch has 2 positions and operates with a stay-put mechanism. This metal selector switch provides an ergonomic interface for controlling your machines. It is supplied with a standard handle. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This selector switch is equipped with 1 normally open (NO) contact, featuring a slow break operation. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Brand

Schneider Electric

Range

Harmony XB4

Part No

XB4BD215

Weight (kg)

0.10 kg

Type

Harmony XB4

With light source

FALSE

Spring-return

FALSE

Colour front ring

Other

Type of control element

Other

Type of electric connection

Other

Number of switch positions

2

Hole diameter

22.5

Material front ring

Other

Switching function latching

FALSE

Number of contacts as normally open contact

1

Colour button

Black

With front ring

FALSE

Suitable for illumination

FALSE

Degree of protection (IP)

IP66

Degree of protection (NEMA)

Other
