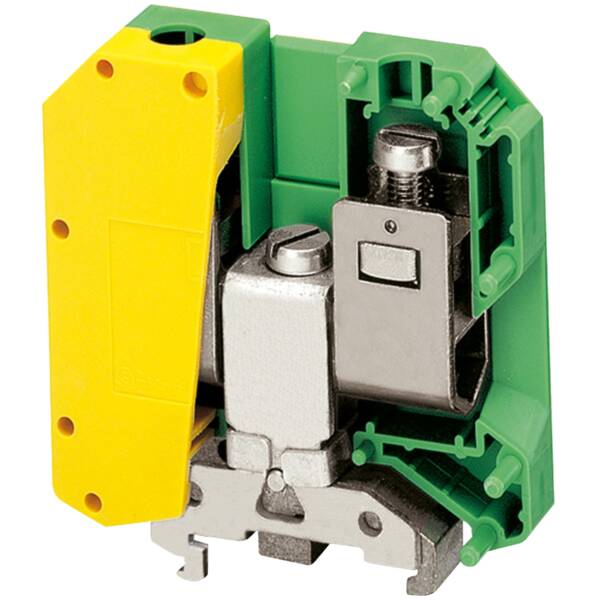

NSYTRV502PE

SCREW TERMINAL, PROTECTIVE EARTH, 2 POINTS, 50MM², GREEN-YELLOW - Schneider Electric - NSYTRV502PE

Enclosures

~~List Price £43.51 +VAT~~

Our Price £32.63 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for protective earth. It belongs to linergy protective earth terminal block with 50 mm² nominal cross section. Mounting by clip-on and top connection by single-level 1x1 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, IECEx, GL, LR). Multi standards certified (UL, CSA, GL, DNV).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRV502PE
Weight (kg): 0.18 kg
Type: Linergy TR terminals blocks
Number of levels: 1
Type of electrical connection 2: Screw connection
Colour: Green/yellow
Width: 20
Type of electrical connection 1: Screw connection
Inflammability class of insulation material according to with UL94: V0
Mounting method: DIN rail (top hat rail) 35 mm
PEN function possible: FALSE
Connectable conductor cross section solid-core: 16…70 Square millimetre
Depth: 70.5
Closing plate required: TRUE
Connectable conductor cross section fine-strand with cable end sleeve: 0.14…6 Square millimetre
Connectable conductor cross section multi-wired: 25…70 Square millimetre
Material insulation body: Thermoplastic
Height: 83.5
Operating temperature: -40…130 Degrees celsius
Connectable conductor cross section fine-strand without cable end sleeve: 0.14…6 Square millimetre
Number of clamp positions per level: 2
