SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 4MM² - Schneider Electric - NSYTRV42MBL
SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 4MM² - Schneider Electric - NSYTRV42MBL

NSYTRV42MBL

SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 4MM² - Schneider Electric - NSYTRV42MBL

Enclosures

List Price £2.82 +VAT

Our Price £2.12 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

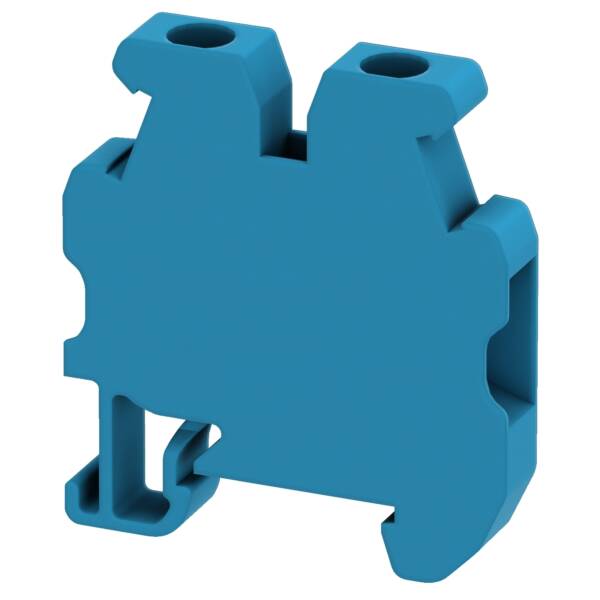

Linergy TR is Mini terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL, 500V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1, 30A conforming to CSA/UL. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE). It is compliant with Green Premium (RoHS/REACH).
Brand
Schneider Electric
Range
Linergy TR terminals blocks
Part No
NSYTRV42MBL
Weight (kg)
0.01 kg
Type
Linergy TR terminals blocks
craft\elements\db\ElementQuery
30
Colour
Blue
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
Screw connection
craft\elements\db\ElementQuery
500
craft\elements\db\ElementQuery
Screw connection
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
V0
craft\elements\db\ElementQuery
34
craft\elements\db\ElementQuery
DIN rail (top hat rail) 15 mm
craft\elements\db\ElementQuery
0.2…6 mm²
craft\elements\db\ElementQuery
6.2
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
Sideways
craft\elements\db\ElementQuery
0.2…4 mm²
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
0.2…4 mm²
craft\elements\db\ElementQuery
Thermoplastic
craft\elements\db\ElementQuery
-40…130 °C
craft\elements\db\ElementQuery
2
craft\elements\db\ElementQuery
0.2…4 mm²
craft\elements\db\ElementQuery
32

Datasheet for NSYTRV42MBL - SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 4MM² - Schneider Electric - NSYTRV42MBL

Download
