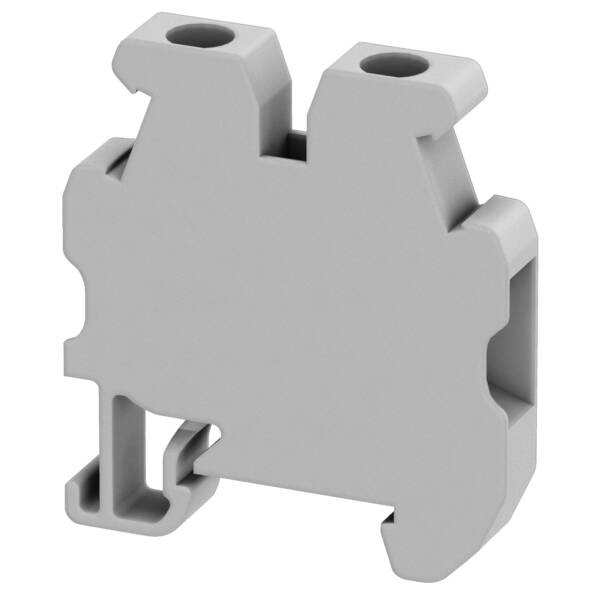

SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 2,5M - Schneider Electric - NSYTRV22M
SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 2,5M - Schneider Electric - NSYTRV22M

NSYTRV22M

SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 2,5M - Schneider Electric - NSYTRV22M

Enclosures

List Price £1.66 +VAT

Our Price £1.25 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
Linergy TR is terminal block for Miniature passthrough type. It belongs to linergy Miniature passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE). It is compliant with Green Premium (RoHS/REACH).
Brand
Schneider Electric
Range
Linergy TR terminals blocks
Part No
NSYTRV22M
Weight (kg)
0.01 kg
Type
Linergy TR terminals blocks
Type of electrical connection 2
Screw connection
Length
30
Number of levels
1
Colour
Grey
Type of electrical connection 1
Screw connection
Rated voltage
500
Internally connected stages
FALSE
Inflammability class of insulation material acc. with UL94
V0
Height at lowest possible mounting height
34
Mounting method
DIN rail (top hat rail) 15 mm
Width/grid dimension
5.2
Connectable conductor cross section solid-core
0.2…4 mm²
Closing plate required
TRUE
Connectable conductor cross section fine-strand with cable end sleeve
0.2…2.5 mm²
Connection position
Sideways
Explosion-tested version 'Ex e'
TRUE
Connectable conductor cross section multi-wired
0.2…2.5 mm²
Material insulation body
Thermoplastic
Operation temperature
-40…130 °C
Number of clamp positions per level
2
Connectable conductor cross section fine-strand without cable end sleeve
0.2…2.5 mm²
Rated current In
24

Datasheet for NSYTRV22M - SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 2,5M - Schneider Electric - NSYTRV22M
