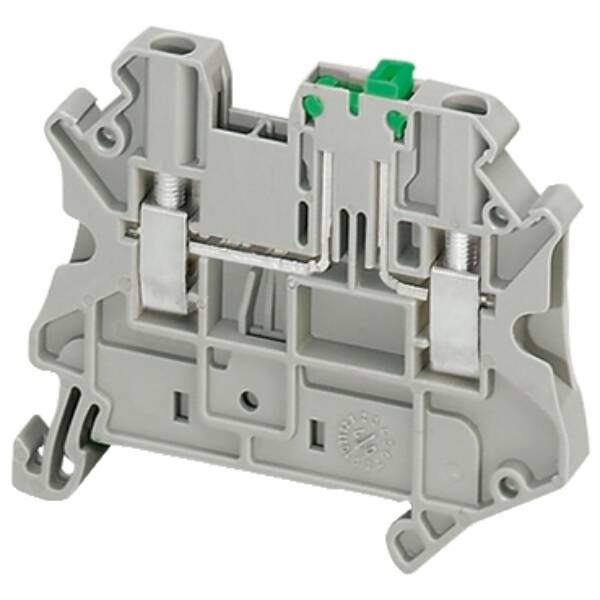

SCREW TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², WITH TEST POINT, GREY - Schneider Electric - NSYTRV22ST
SCREW TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², WITH TEST POINT, GREY - Schneider Electric - NSYTRV22ST

NSYTRV22ST

SCREW TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², WITH TEST POINT, GREY - Schneider Electric - NSYTRV22ST

Enclosures

List Price £3.27 +VAT

Our Price £2.45 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
Linergy TR is terminal block for Linergy. It belongs to knife disconnect block with 2.5 mm² nominal cross section. It has grey surface treatment. The rated current is 16A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).
Brand
Schneider Electric
Range
Linergy TR terminals blocks
Part No
NSYTRV22ST
Weight (kg)
0.01 kg
Type
Linergy TR terminals blocks
Length
57.8
Type of electrical connection 2
Screw connection
Colour
Grey
Number of levels
1
Type of electrical connection 1
Screw connection
Rated voltage
500
Internally connected stages
FALSE
Inflammability class of insulation material acc. with UL94
V0
Type of slitting
Swivelling
Height at lowest possible mounting height
49.1
Mounting method
DIN rail (top hat rail) 35 mm
Width/grid dimension
5.2
Connectable conductor cross section solid-core
0.14…4 mm²
Closing plate required
TRUE
With integrated test socket
TRUE
Type of cross disconnection
Swivelling
Connection position
Sideways
Connectable conductor cross section fine-strand with cable end sleeve
0.14…4 mm²
Connectable conductor cross section multi-wired
0.14…4 mm²
Material insulation body
Thermoplastic
Operation temperature
-40…130 °C
Number of clamp positions per level
1
Connectable conductor cross section fine-strand without cable end sleeve
0.14…4 mm²
Rated current In
20

Datasheet for NSYTRV22ST - SCREW TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², WITH TEST POINT, GREY - Schneider Electric - NSYTRV22ST
