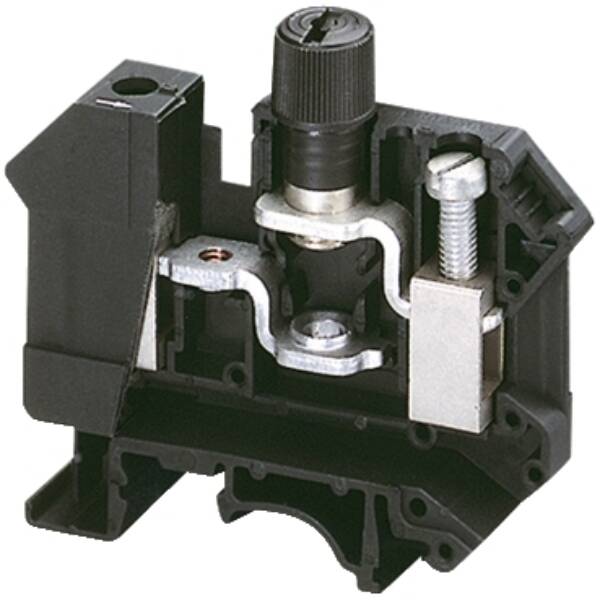

Linergy TR is terminal block for Linergy. It belongs to linergy fixed carrier terminal block with 16 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 10A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA/UL. It has black surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, DNV). Multi standards certified (CSA, cURus, DNV, LR, EAC). It is compliant with Green Premium (RoHS/REACH).

Brand

Schneider Electric

Range

Linergy TR terminals blocks

Part No

NSYTRV162SF

Weight (kg)

0.03 kg

Type

Linergy TR terminals blocks

Colour

Black

Type of electrical connection 2

Screw connection

Number of levels

1

Type of electrical connection 1

Screw connection

Width

12

Rated voltage

500

Type of fuse insert

G-fuse 5x20 mm

Inflammability class of insulation material according to with UL94

V0

Type of indication element for defect indication

None

Type of fuse holder

Screwable

Mounting method

DIN rail (top hat rail) 35 mm

Connectable conductor cross section solid-core

0.5…16 Square millimetre

Depth

62

Closing plate required

FALSE

Connectable conductor cross section fine-strand with cable end sleeve

1.5…16 Square millimetre

Connectable conductor cross section multi-wired

0.5…16 Square millimetre

Material insulation body

Thermoplastic

Operating temperature

-40…130 Degrees celsius

Height

57.2

Connectable conductor cross section fine-strand without cable end sleeve

0.08…2.5 Square millimetre

Rated current In

10
