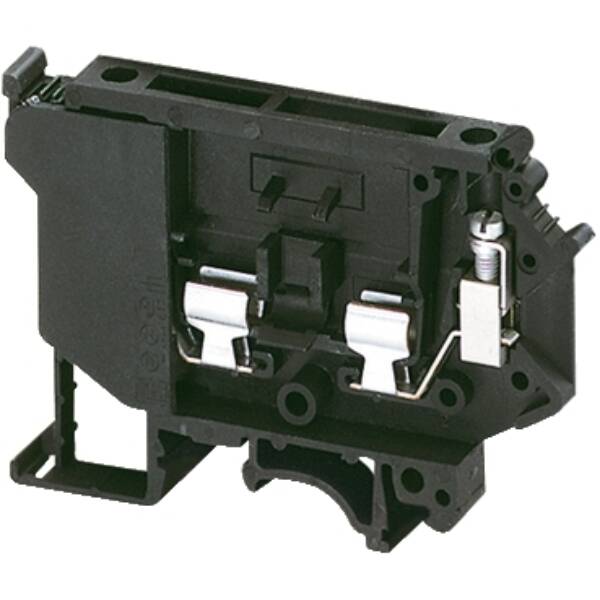

Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1 and 10A conforming to CSA/ UL. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20 mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).

Brand

Schneider Electric

Range

Linergy TR terminals blocks

Part No

NSYTRV42SF5LD

Weight (kg)

0.02 kg

Type

Linergy TR terminals blocks

Length

72.5

Type of electrical connection 2

Screw connection

Colour

Black

Number of levels

1

Type of electrical connection 1

Screw connection

Rated voltage

500

Type of fuse insert

G-fuse 5x20 mm

Inflammability class of insulation material acc. with UL94

V0

Type of indication element for defect indication

LED

Type of fuse holder

Swivelling

Height at lowest possible mounting height

56.5

Mounting method

DIN rail (top hat rail) 35 mm

Voltage type for defect indication

AC/DC

Width/grid dimension

8.2

Supply voltage for defect-indication

12…30 V

Connectable conductor cross section solid-core

0.5…4 mm²

Closing plate required

TRUE

Connection position

Sideways

Connectable conductor cross section fine-strand with cable end sleeve

0.2…4 mm²

Connectable conductor cross section multi-wired

0.5…4 mm²

Material insulation body

Thermoplastic

Operation temperature

-40…130 °C

Connectable conductor cross section fine-strand without cable end sleeve

0.2…4 mm²

Rated current In

6.3
