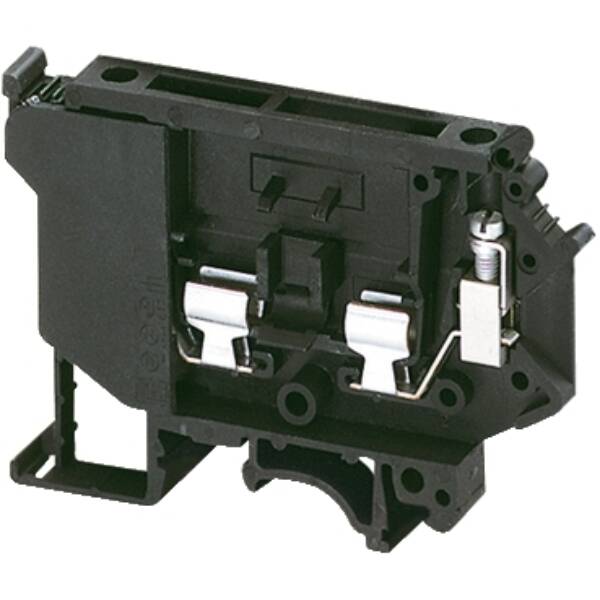

Linergy TR is terminal block for Fuse disconnect type. It belongs to linergy fuse disconnect terminal block with 4 mm² nominal cross section. The rated operational voltage is 500V conforming to CSA/UL and 600V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1 and 10A conforming to CSA/ UL. It has Black surface treatment. Mounting by clip-on and sideways connection with 5x20 mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). It is compliant with Green Premium (RoHS/REACH).

Brand

Schneider Electric

Range

Linergy TR terminals blocks

Part No

NSYTRV42SF5LA

Weight (kg)

0.02 kg

Type

Linergy TR terminals blocks

Colour

Black

Number of levels

1

Length

72.5

Type of electrical connection 2

Screw connection

Rated voltage

500

Type of electrical connection 1

Screw connection

Type of fuse insert

G-fuse 5x20 mm

Type of indication element for defect indication

LED

Inflammability class of insulation material acc. with UL94

V0

Type of fuse holder

Swivelling

Mounting method

DIN rail (top hat rail) 35 mm

Height at lowest possible mounting height

56.5

Connectable conductor cross section solid-core

0.2…4 mm²

Width/grid dimension

8.2

Voltage type for defect indication

AC/DC

Supply voltage for defect-indication

110…250 V

Closing plate required

TRUE

Connectable conductor cross section fine-strand with cable end sleeve

0.2…4 mm²

Connection position

Sideways

Connectable conductor cross section multi-wired

0.2…4 mm²

Material insulation body

Thermoplastic

Operation temperature

-40…130 °C

Connectable conductor cross section fine-strand without cable end sleeve

0.2…4 mm²

Rated current In

6.3
