NSYTRV702

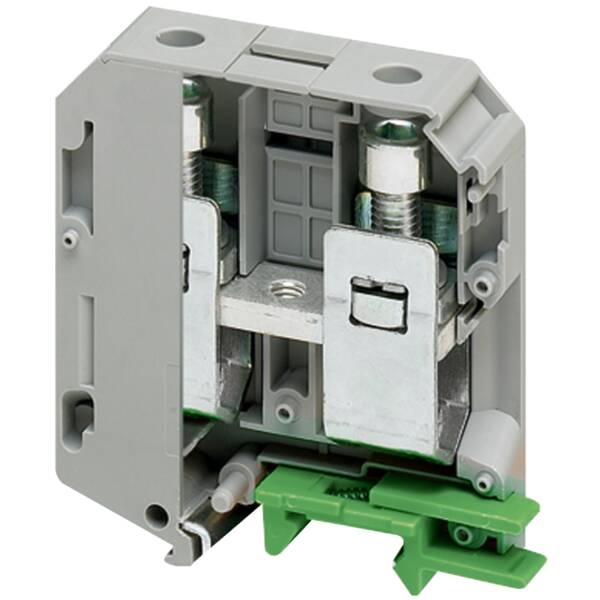

SCREW TERMINAL, FEED THROUGH, 2 POINTS, 70MM² , GREY - Schneider Electric - NSYTRV702

Automation

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 70 mm² nominal cross section. The rated operational voltage is 600V conforming to cURus, 1000V conforming to CSA and 1000V conforming to EN/IEC 60947-7-1. The rated current is 192A conforming to EN/IEC 60947-7-1 and 192A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 10 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

~~List Price £32.74 +VAT~~

Our Price £24.56 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
