NSYTRV502BL

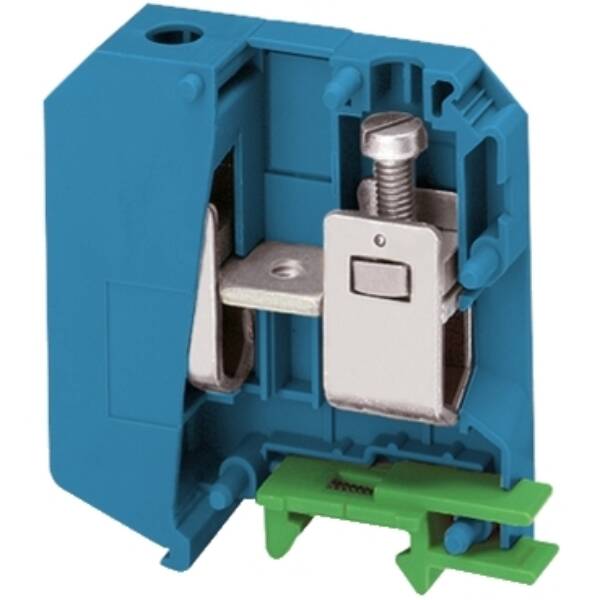

SCREW TERMINAL, FEED THROUGH, 2 POINTS, 50MM² , BLUE - Schneider Electric - NSYTRV502BL

Enclosures

~~List Price £16.18 +VAT~~

Our Price £12.14 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 50 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1000V conforming to EN/IEC 60947-7-1. The rated current is 150A conforming to EN/IEC 60947-7-1, 150A conforming to CSA/UL. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRV502BL
Weight (kg): 0.12 kg
Type: Linergy TR terminals blocks
Type of electrical connection 2: Screw connection
Number of levels: 1
Colour: Blue
Length: 70.5
Type of electrical connection 1: Screw connection
Rated voltage: 1000
Internally connected stages: FALSE
Inflammability class of insulation material acc. with UL94: V0
Mounting method: DIN rail (top hat rail) 35 mm
Height at lowest possible mounting height: 83.5
Width/grid dimension: 20
Connectable conductor cross section solid-core: 16…70 mm²
Closing plate required: FALSE
Connection position: Sideways
Connectable conductor cross section fine-strand with cable end sleeve: 25…50 mm²
Explosion-tested version 'Ex e': TRUE
Connectable conductor cross section multi-wired: 25…70 mm²
Material insulation body: Thermoplastic
Operation temperature: -40…130 °C
Connectable conductor cross section fine-strand without cable end sleeve: 25…70 mm²
Number of clamp positions per level: 2
Rated current In: 150
