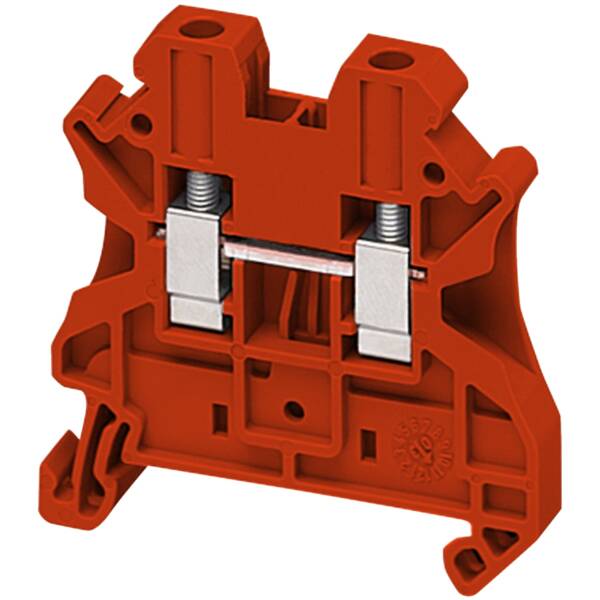

SCREW TERMINAL, FEED THROUGH, 2 POINTS, 4MM² , RED - Schneider Electric - NSYTRV42RD
SCREW TERMINAL, FEED THROUGH, 2 POINTS, 4MM² , RED - Schneider Electric - NSYTRV42RD

NSYTRV42RD

SCREW TERMINAL, FEED THROUGH, 2 POINTS, 4MM² , RED - Schneider Electric - NSYTRV42RD

Enclosures

List Price £0.96 +VAT

Our Price £0.72 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Linergy TR is terminal block for Passthrough type. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1000V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1 and 26A conforming to CSA and cURus. It has Red surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). It is compliant with Green Premium (RoHS/REACH).
