NSYTRV42

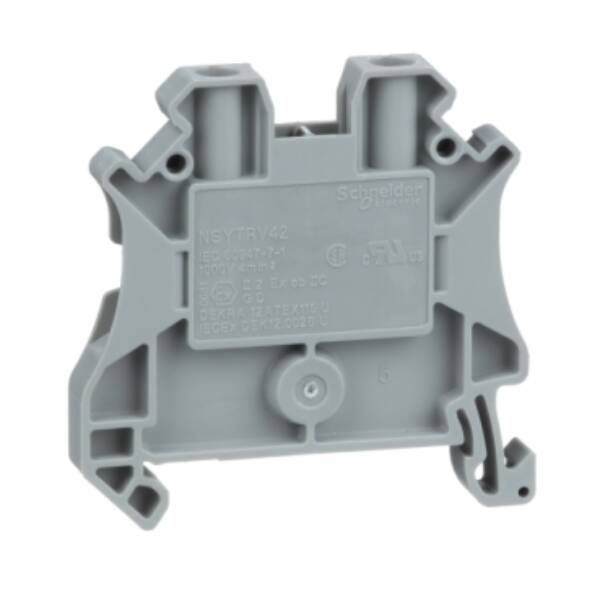

SCREW TERMINAL, FEED THROUGH, 2 POINTS, 4MM² , GREY - Schneider Electric - NSYTRV42

Enclosures

~~List Price £0.92 +VAT~~

Our Price £0.69 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 32A conforming to EN/IEC 60947-7-1, 30A conforming to CSA/cURus and 30A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRV42
Weight (kg): 0.01 kg
Type: Linergy TR terminals blocks
Type of electrical connection 2: Screw connection
Number of levels: 1
Colour: Grey
Length: 47.7
Type of electrical connection 1: Screw connection
Rated voltage: 1000
Internally connected stages: FALSE
Inflammability class of insulation material acc. with UL94: V0
Mounting method: DIN rail (top hat rail) 35 mm
Height at lowest possible mounting height: 47.5
Width/grid dimension: 6.2
Connectable conductor cross section solid-core: 0.14…6 mm²
Closing plate required: TRUE
Connection position: Sideways
Connectable conductor cross section fine-strand with cable end sleeve: 0.2…4 mm²
Connectable conductor cross section multi-wired: 0.14…6 mm²
Explosion-tested version 'Ex e': TRUE
Material insulation body: Thermoplastic
Operation temperature: -40…130 °C
Connectable conductor cross section fine-strand without cable end sleeve: 0.14…6 mm²
Number of clamp positions per level: 2
Rated current In: 32
