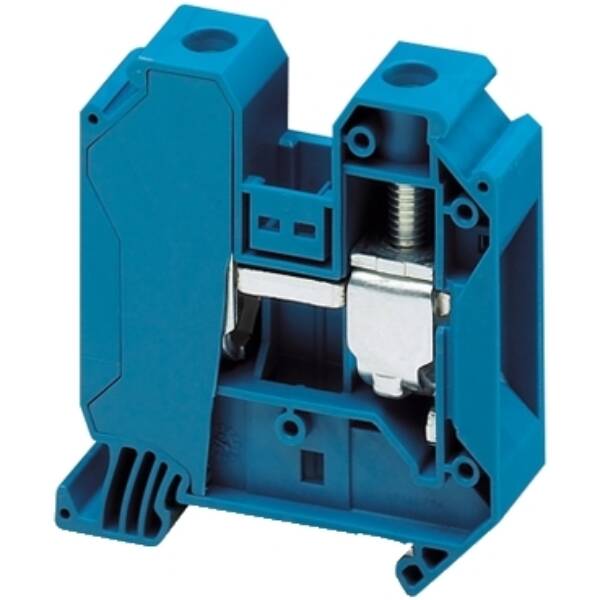

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 35 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 125A conforming to EN/IEC 60947-7-1, 150A conforming to CSA/cURus and 126A conforming to ATEX Exe II Ex II 2 GD. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL). Multi standards certified (ATEX, CSA, cURus, GL, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Brand

Schneider Electric

Range

Linergy TR terminals blocks

Part No

NSYTRV352BL

Weight (kg)

0.06 kg

Type

Linergy TR terminals blocks

Number of levels

1

Type of electrical connection 2

Screw connection

Colour

Blue

Width

16

Rated voltage

1000

Type of electrical connection 1

Screw connection

Internally connected stages

FALSE

Inflammability class of insulation material according to with UL94

V0

Mounting method

DIN rail (top hat rail) 35 mm

Connectable conductor cross section solid-core

1.5…50 Square millimetre

Depth

60.2

Closing plate required

FALSE

Connectable conductor cross section fine-strand with cable end sleeve

1.5…50 Square millimetre

Explosion-tested version 'Ex e'

TRUE

Connectable conductor cross section multi-wired

1.5…50 Square millimetre

Material insulation body

Thermoplastic

Operating temperature

-40…130 Degrees celsius

Height

65.7

Number of clamp positions per level

2

Connectable conductor cross section fine-strand without cable end sleeve

1.5…50 Square millimetre

Suitable for conductor material

Aluminium/copper

Rated current In

125
