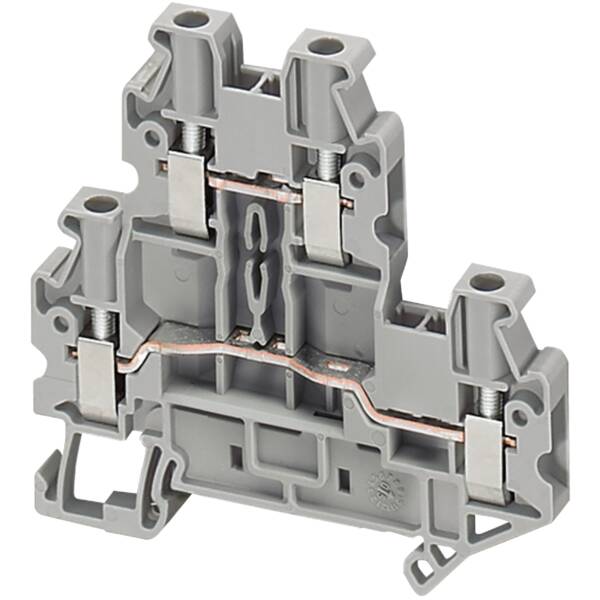

SCREW TERMINAL, DOUBLE LEVEL, 4 POINTS, 2,5MM² , GREY - Schneider Electric - NSYTRV24D
SCREW TERMINAL, DOUBLE LEVEL, 4 POINTS, 2,5MM² , GREY - Schneider Electric - NSYTRV24D

NSYTRV24D

SCREW TERMINAL, DOUBLE LEVEL, 4 POINTS, 2,5MM² , GREY - Schneider Electric - NSYTRV24D

Enclosures

List Price £2.61 +VAT

Our Price £1.96 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 500V conforming to EN/IEC 60947-7-1 and 352V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 20A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Brand
Schneider Electric
Range
Linergy TR terminals blocks
Part No
NSYTRV24D
Weight (kg)
0.02 kg
Type
Linergy TR terminals blocks
craft\elements\db\ElementQuery
Screw connection
craft\elements\db\ElementQuery
69.9
craft\elements\db\ElementQuery
2
Colour
Grey
craft\elements\db\ElementQuery
Screw connection
craft\elements\db\ElementQuery
500
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
V0
craft\elements\db\ElementQuery
65
craft\elements\db\ElementQuery
DIN rail (top hat rail) 35 mm
craft\elements\db\ElementQuery
5.2
craft\elements\db\ElementQuery
0.14…4 mm²
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
Sideways
craft\elements\db\ElementQuery
0.2…2.5 mm²
craft\elements\db\ElementQuery
0.14…4 mm²
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
Thermoplastic
craft\elements\db\ElementQuery
-40…130 °C
craft\elements\db\ElementQuery
2
craft\elements\db\ElementQuery
0.14…4 mm²
craft\elements\db\ElementQuery
24

Datasheet for NSYTRV24D - SCREW TERMINAL, DOUBLE LEVEL, 4 POINTS, 2,5MM² , GREY - Schneider Electric - NSYTRV24D

Download
