Schneider OffGrid Portable Power Station 500, 230V, 517Wh Lithium-ion, LCD, 2 BS1363 UK outlets, Sinewave, 3 USB-A, 2 USB-C, Wireless Charger - Schneider Electric - PPS500-UK

PPS500-UK

Schneider OffGrid Portable Power Station 500, 230V, 517Wh Lithium-ion, LCD, 2 BS1363 UK outlets, Sinewave, 3 USB-A, 2 USB-C, Wireless Charger - Schneider Electric - PPS500-UK

Power

List Price £625.58 +VAT

Our Price £531.74 +VAT

SAVE 16% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

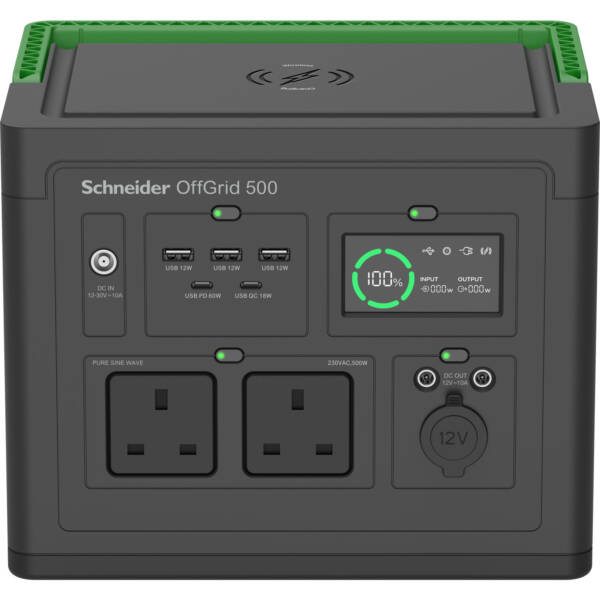

Schneider Electric's OffGrid Portable Power Station is designed for outdoor enthusiasts and home users to provide consistent, reliable power whenever you need it - anytime, anywhere. Weighing 5.5 kg (12.1 lb), the Portable Power Station is compact for easy portability without compromising durability. It features 2 pure sine wave AC outlets, 3 USB-A ports, 2 DC5521 outlets, one car port, and 2 USB-C PD ports up to PD60W The Portable Power Station comes with three ways to recharge: wall, solar, and car. It takes ~7 hours to fully charge via wall outlet, or 3 hours by connecting it to the optional 200W solar panel accessory. Designed with sustainability in mind, the Portable Power Station has casing made with 60% post-consumer recycled plastic and comes in sustainable packaging. It comes with a 2 year warranty for your peace of mind.
Range
Schneider OffGrid
Part No
PPS500-UK
Weight (kg)
7.10 kg
Max. discharge power
1
Max. charge power
1
Max. loading current
1
Max. emergency power
1
Max. input voltage DC
30
Networkable via Wi-Fi
FALSE
Number of phases
1
With communication interface CANOpen
FALSE
Usable battery capacity
0.517
Data transfer via Wi-Fi
FALSE
USB interface
FALSE
With load management
TRUE
With communication interface RS-232
FALSE
Communication interface internet ethernet
FALSE
Rated MPP-voltage
1 Volt
Type of voltage (input voltage)
AC/DC
Short-time peak load
1
Height
204
Nominal battery capacity
0.517
Display
Integrated
Degree of protection (IP)
IP40
Battery type
Lithium-ions
Max. output current DC
10
Max. unloading current
1
Width
200
Overload-/temperature protection
TRUE
Ambient temperature
20…70 Degrees celsius
Supporting protocol for Modbus
FALSE
Frequency
50/60 Hz
With communication interface RS-485
FALSE
Depth
250
Nominal output power AC
0.5
Number of independent MPPT inputs
1
Suitable for emergency power
TRUE
Data transfer via Bluetooth
FALSE
Output voltage AC
230
Max. input current DC
10
Max. depth of discharge
100
Remote read-out
FALSE
