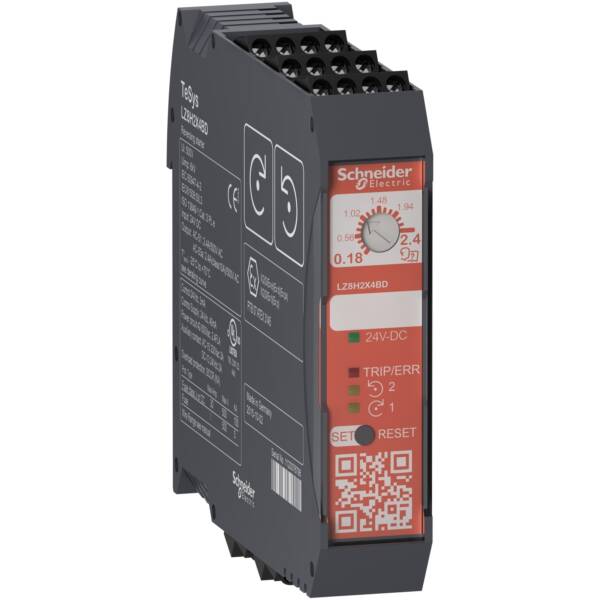

TeSys H ultra compact reverse safety starter, 3 poles, 6.5A/500V AC-53, for control and protection of 3-phase motors up to 3kW@400V (3HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 1.5-6.5A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).

Brand

Schneider Electric

Range

TeSys Hybrid

Part No

LZ8H6X5BD

Weight (kg)

0.27 kg

Type

TeSys Hybrid

Type of electrical connection of main circuit

Screw connection

craft\elements\db\ElementQuery

4

Rated operation power at AC-3, 400 V

3

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

9

Overload release current setting

1.5…6.5 A

craft\elements\db\ElementQuery

TRUE

craft\elements\db\ElementQuery

70

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

6.5

craft\elements\db\ElementQuery

Screw connection

craft\elements\db\ElementQuery

TRUE

craft\elements\db\ElementQuery

DC

Height

106.5

craft\elements\db\ElementQuery

FALSE

Width

22.6

craft\elements\db\ElementQuery

CLASS 10

craft\elements\db\ElementQuery

FALSE

Depth

113.4

craft\elements\db\ElementQuery

FALSE

Supporting protocol for EtherNet/IP

FALSE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

FALSE

Supporting protocol for PROFINET IO

FALSE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

1.5

craft\elements\db\ElementQuery

FALSE

Supporting protocol for PROFIBUS

FALSE

craft\elements\db\ElementQuery

Reversing starter

Supporting protocol for TCP/IP

FALSE

craft\elements\db\ElementQuery

FALSE

Degree of protection (IP)

IP20

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

TRUE

craft\elements\db\ElementQuery

FALSE

Supporting protocol for MODBUS

FALSE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

TRUE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

3

Rated control supply voltage Us at DC

24 V
