LZ2H2X43BD

Reversing Starter TeSys H 0,75kW-400V control 24VDC Spring - Schneider Electric - LZ2H2X43BD

Control

~~List Price £156.22 +VAT~~

Our Price £117.17 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

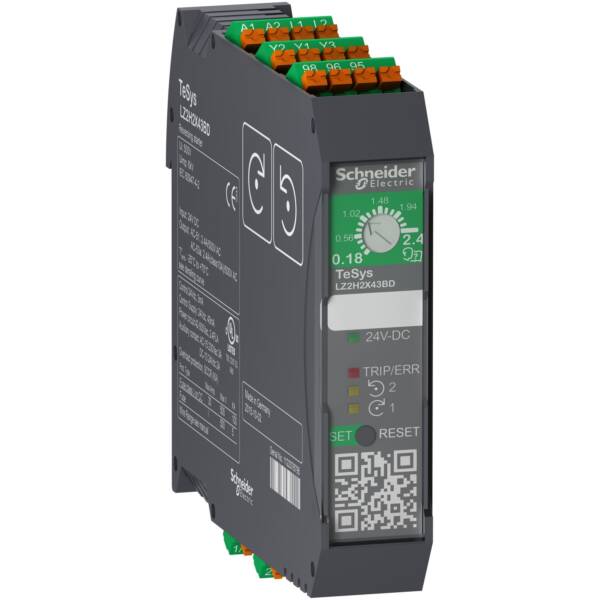

TeSys H ultra compact reverse starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).

Brand: Schneider Electric
Range: TeSys Hybrid
Part No: LZ2H2X43BD
Weight (kg): 0.24 kg
Type: TeSys Hybrid
Type of electrical connection of main circuit: Spring clamp connection
Number of indicator lights: 4
Rated operation power at AC-3, 400 V: 0.75
Supporting protocol for SERCOS: FALSE
Rated operation current Ie: 2.4
Ambient temperature, upper operating limit: 70
Overload release current setting: 0.18…2.4 Ampere
With transformer: FALSE
External reset possible: TRUE
Type of electrical connection for auxiliary- and control current circuit: Spring clamp connection
Rated operation current at AC-3, 400 V: 2.4
Temperature compensated overload protection: TRUE
Voltage type for actuating: DC
Height: 107.5
Supporting protocol for INTERBUS-Safety: FALSE
Width: 22.6
Release class: CLASS 10
Supporting protocol for AS-Interface Safety at Work: FALSE
Depth: 113.4
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Supporting protocol for SafetyBUS p: FALSE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Rated operation power at AC-3, 230 V, 3-phase: 0.37
Supporting protocol for ASI: FALSE
Supporting protocol for PROFIBUS: FALSE
Type of motor starter: Reversing starter
Supporting protocol for TCP/IP: FALSE
Degree of protection (IP): IP20
Supporting protocol for CAN: FALSE
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: TRUE
Supporting protocol for DeviceNet: FALSE
Supporting protocol for Modbus: FALSE
Supporting protocol for Data-Highway: FALSE
Suitable for emergency stop: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
With fuse: FALSE
With short-circuit release: FALSE
Supporting protocol for SUCONET: FALSE
Rated power, 460 V, 60 Hz, 3-phase: 0.75
Rated control supply voltage DC: 24 Volt
