Reversing Starter TeSys H 0,75kW-400V control 110-230VAC - Schneider Electric - LZ2H2X4FU
Reversing Starter TeSys H 0,75kW-400V control 110-230VAC - Schneider Electric - LZ2H2X4FU

LZ2H2X4FU

Reversing Starter TeSys H 0,75kW-400V control 110-230VAC - Schneider Electric - LZ2H2X4FU

Control

List Price £149.64 +VAT

Our Price £112.23 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

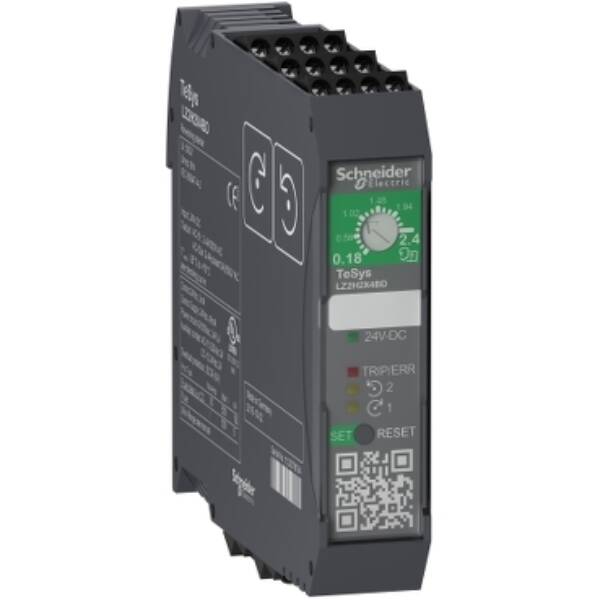

TeSys H ultra compact reverse starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 110-230V AC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
Brand
Schneider Electric
Range
TeSys Hybrid
Part No
LZ2H2X4FU
Weight (kg)
0.27 kg
Type
TeSys Hybrid
Type of electrical connection of main circuit
Screw connection
Number of indicator lights
4
Rated operation power at AC-3, 400 V
0.75
Supporting protocol for SERCOS
FALSE
Rated operation current Ie
2.4
Overload release current setting
0.18…2.4 A
External reset possible
TRUE
With transformer
FALSE
Ambient temperature, upper operating limit
70
Rated operation current at AC-3, 400 V
2.4
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Temperature compensated overload protection
TRUE
Height
106.5
Voltage type for actuating
AC
Supporting protocol for INTERBUS-Safety
FALSE
Width
22.6
Release class
CLASS 10
Supporting protocol for AS-Interface Safety at Work
FALSE
Depth
113.4
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Rated operation power at AC-3, 230 V, 3-phase
0.37
Kind of motor starter
Reversing starter
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Degree of protection (IP)
IP20
Supporting protocol for CAN
FALSE
Supporting protocol for INTERBUS
FALSE
Rated control supply voltage Us at AC 50HZ
110…230 V
Rated control supply voltage Us at AC 60HZ
110…230 V
Rail mounting possible
TRUE
Supporting protocol for DeviceNet
FALSE
Supporting protocol for MODBUS
FALSE
Supporting protocol for Data-Highway
FALSE
Suitable for emergency stop
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
With fuse
FALSE
With short-circuit release
FALSE
Supporting protocol for SUCONET
FALSE
Rated power, 460 V, 60 Hz, 3-phase
0.75

Datasheet for LZ2H2X4FU - Reversing Starter TeSys H 0,75kW-400V control 110-230VAC - Schneider Electric - LZ2H2X4FU
