LU2B38FU

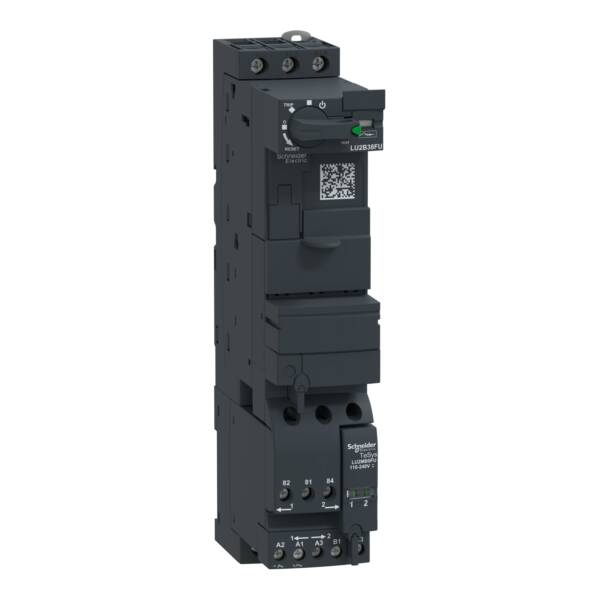

Reversing power base, TeSys U, 3P, 38A/690V, coil 110-240V AC/DC - Schneider Electric - LU2B38FU

Automation

TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 18.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0FU to be supplied with 110-240V AC / 110-220V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 25kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

~~List Price £262.66 +VAT~~

Our Price £197.00 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
