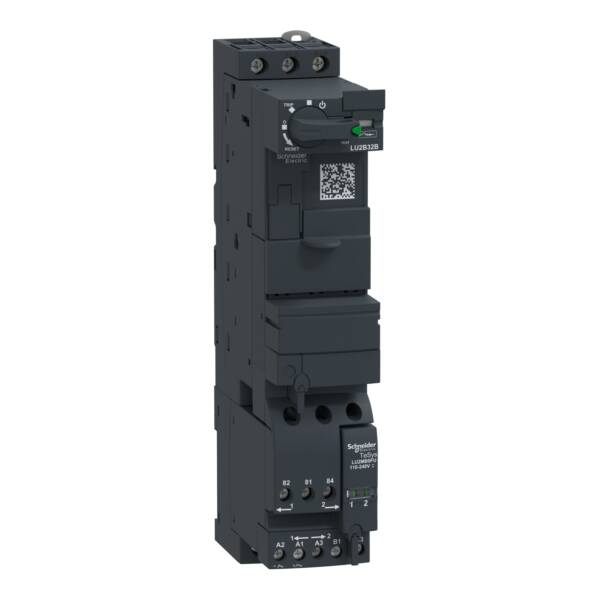

Reversing power base, TeSys U, 3P, 32A/690V, coil 24V AC - Schneider Electric - LU2B32B
Reversing power base, TeSys U, 3P, 32A/690V, coil 24V AC - Schneider Electric - LU2B32B

LU2B32B

Reversing power base, TeSys U, 3P, 32A/690V, coil 24V AC - Schneider Electric - LU2B32B

Control

List Price £241.37 +VAT

Our Price £181.03 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0B to be supplied with 24V AC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine)
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LU2B32B
Weight (kg)
1.30 kg
Type
TeSys U
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 400 V
15
Supporting protocol for SERCOS
FALSE
Rated conditional short-circuit current, type 1, 480 Y/277 V
10000
Rated conditional short-circuit current, type 2, 230 V
50000
Rated operation current Ie
32
Rated conditional short-circuit current, type 1, 600 Y/347 V
4000
Ambient temperature, upper operating limit
70
With transformer
FALSE
External reset possible
FALSE
Rated operation current at AC-3, 400 V
32
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rated conditional short-circuit current, type 2, 400 V
50000
Height
224
Voltage type for actuating
AC
Supporting protocol for INTERBUS-Safety
FALSE
Number of command positions
3
Width
45
Number of auxiliary contacts as normally closed contact
1
Supporting protocol for AS-Interface Safety at Work
FALSE
Number of auxiliary contacts as normally open contact
1
Coordination class according to IEC 60947-4-3
Class 2
Depth
126
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Rated operation power at AC-3, 230 V, 3-phase
7.5
Supporting protocol for ASI
FALSE
Kind of motor starter
Reversing starter
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Supporting protocol for CAN
FALSE
Degree of protection (IP)
IP20
Supporting protocol for INTERBUS
FALSE
Rated control supply voltage Us at AC 50HZ
24 V
Rated control supply voltage Us at AC 60HZ
24 V
Rail mounting possible
TRUE
Supporting protocol for DeviceNet
FALSE
Supporting protocol for MODBUS
FALSE
Supporting protocol for Data-Highway
FALSE
Suitable for emergency stop
FALSE
Supporting protocol for LON
FALSE
With fuse
FALSE
Supporting protocol for other bus systems
FALSE
With short-circuit release
TRUE
Supporting protocol for SUCONET
FALSE
Rated power, 575 V, 60 Hz, 3-phase
15
Rated power, 460 V, 60 Hz, 3-phase
15
