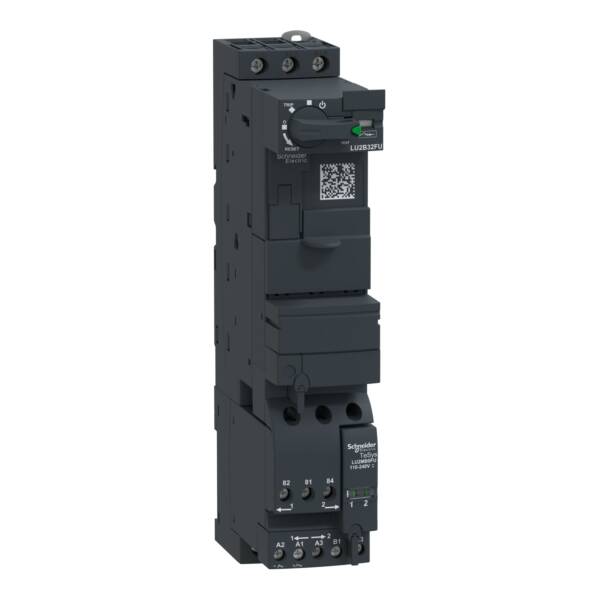

TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0FU to be supplied with 110-240V AC / 110-220V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine)

Brand

Schneider Electric

Range

TeSys Ultra

Part No

LU2B32FU

Weight (kg)

1.31 kg

Type

TeSys U

Type of electrical connection of main circuit

Screw connection

Rated operation power at AC-3, 400 V

15

Rated conditional short-circuit current, type 1, 480 Y/277 V

10000

Supporting protocol for SERCOS

FALSE

Rated conditional short-circuit current, type 2, 230 V

50000

Rated operation current Ie

32

Rated conditional short-circuit current, type 1, 600 Y/347 V

4000

With transformer

FALSE

Ambient temperature, upper operating limit

70

External reset possible

FALSE

Rated operation current at AC-3, 400 V

32

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Rated conditional short-circuit current, type 2, 400 V

50000

Voltage type for actuating

AC/DC

Height

224

Supporting protocol for INTERBUS-Safety

FALSE

Number of command positions

3

Width

45

Number of auxiliary contacts as normally closed contact

1

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of auxiliary contacts as normally open contact

1

Coordination class according to IEC 60947-4-3

Class 2

Depth

126

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Rated operation power at AC-3, 230 V, 3-phase

7.5

Kind of motor starter

Reversing starter

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

Supporting protocol for INTERBUS

FALSE

Rated control supply voltage Us at AC 50HZ

110…240 V

Rated control supply voltage Us at AC 60HZ

110…240 V

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Suitable for emergency stop

FALSE

Supporting protocol for LON

FALSE

With fuse

FALSE

Supporting protocol for other bus systems

FALSE

With short-circuit release

TRUE

Supporting protocol for SUCONET

FALSE

Rated power, 575 V, 60 Hz, 3-phase

15

Rated power, 460 V, 60 Hz, 3-phase

15

Rated control supply voltage Us at DC

110…220 V
