REVERSING CONTACTOR 575VAC 9A IEC - Schneider Electric - LC2D09U7

REVERSING CONTACTOR 575VAC 9A IEC - Schneider Electric - LC2D09U7

LC2D09U7

REVERSING CONTACTOR 575VAC 9A IEC - Schneider Electric - LC2D09U7

Control

~~List Price £121.87 +VAT~~

Our Price £91.40 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

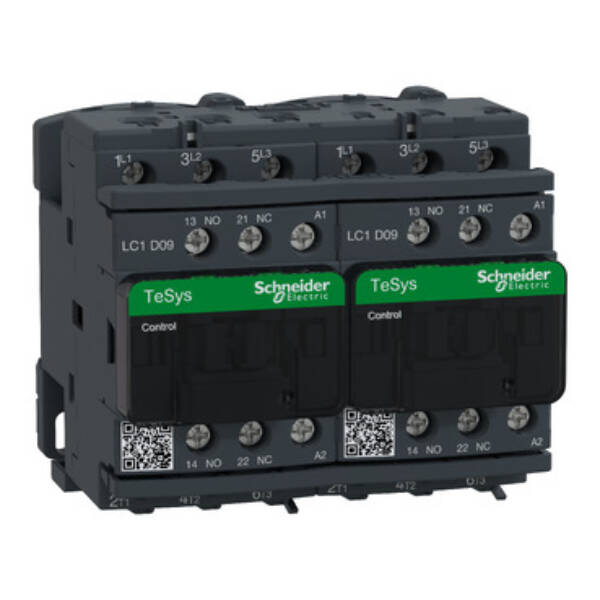

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/440V AC-3/3e (4kW@400V). It is provided with 240V 50/60Hz AC coils with integral transient suppressor modules, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. It is suitable for operating rates until 3600 cycles/hour and environment temperature until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2D09U7
Weight (kg): 0.73 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 240 V
Rated operation power NEMA: 3.73
Rated control supply voltage Us at AC 60HZ: 240 V
Rated operation current Ie at AC-3, 400 V: 9
Voltage type for actuating: AC
Degree of protection (IP): IP20
Function: Reversing safety
Rated operation power at AC-3, 400 V: 4
Degree of protection (NEMA): Other
